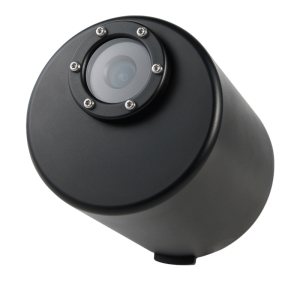

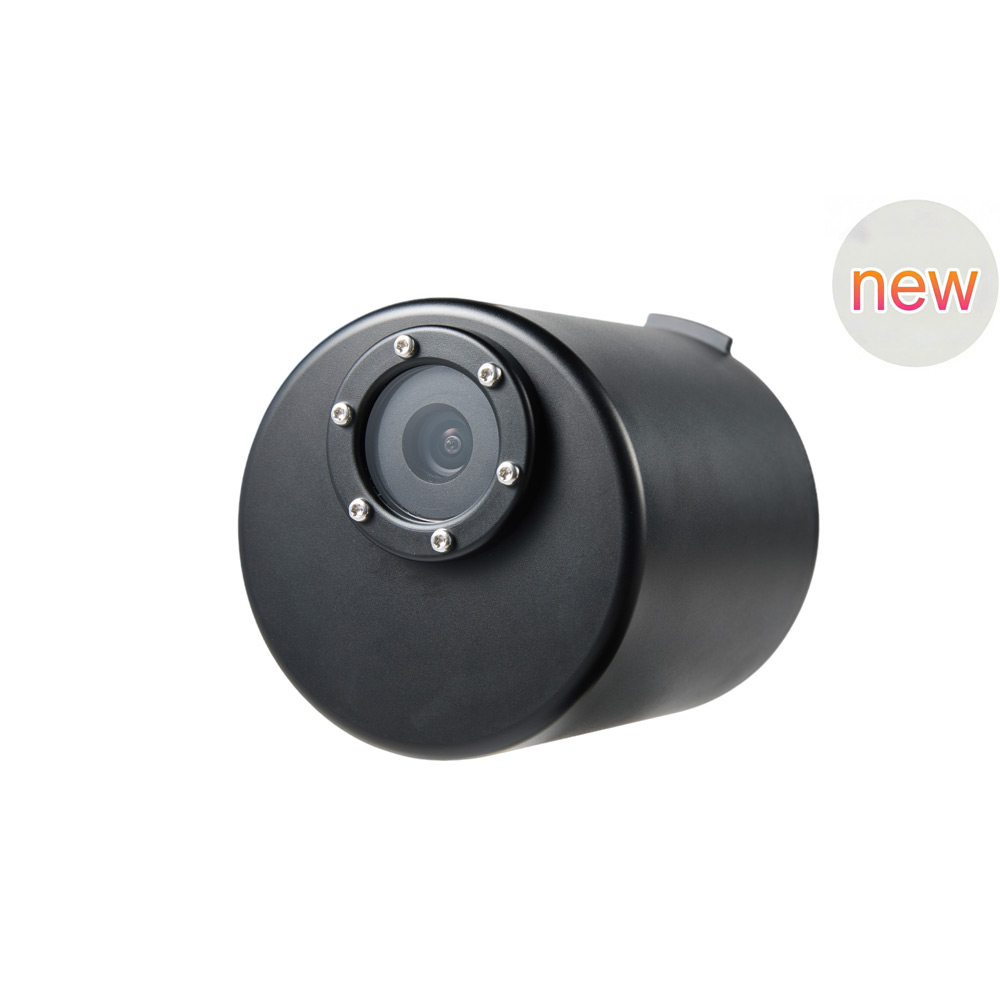

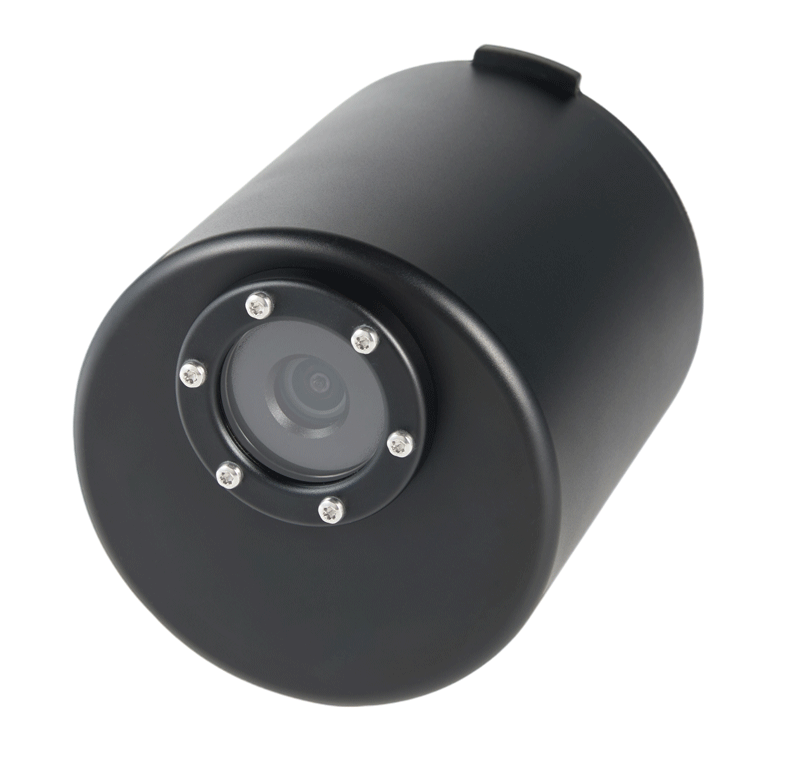

Product Introduction
Ready to use, zero tuning, professional cinematic results instantly ● Depth Rating: 500m ● High-Definition Underwater Video: 5.3k60 | 4k120 | 2.7k240 ● GoPro Core: GoPro Hero12(27MP Photos) ● Stabilization: Electronic Image Stabilization (EIS) ●Mounting: Includes Adjustable Mounting Bracket (Adjustable pitch/tilt angle) ●Smart Control: Remote Video Preview & Camera Control |
● High-Definition Underwater Video & Photography
● Subsea Testing & Observation

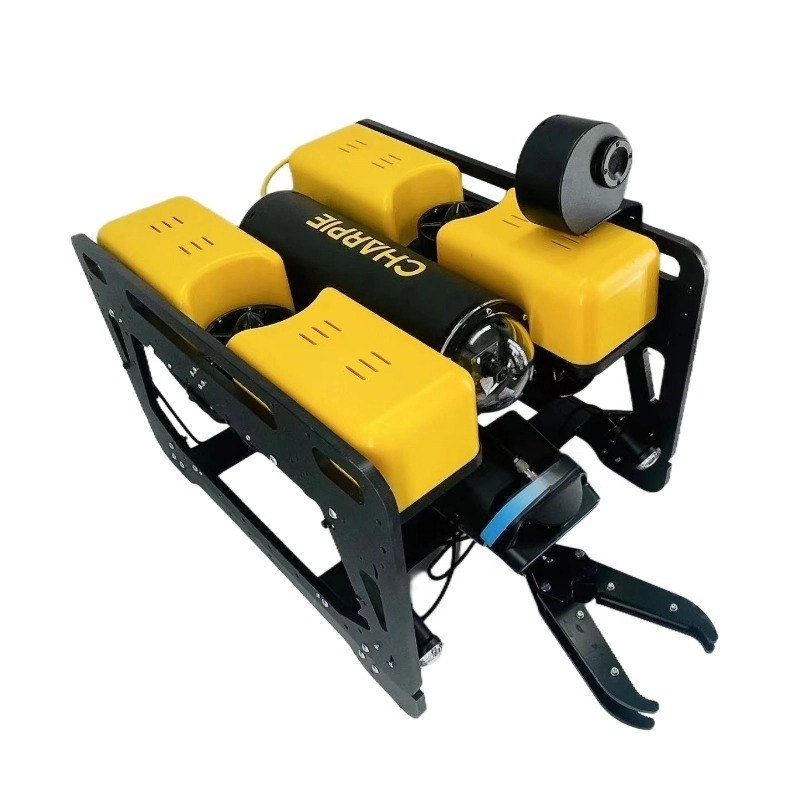

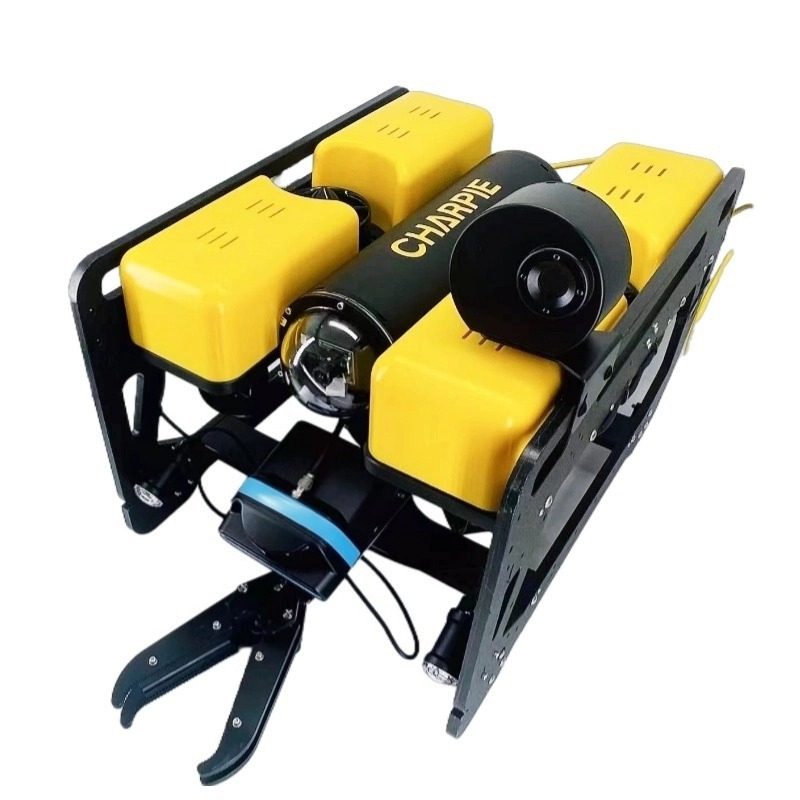

● ROV/AUV “Selfie” & Monitoring
Key Specifications
| Depth Rating | 500m |
| Weight in Air | Water | 1.25kg | 0.15kg |
| Camera Model | Gopro HERO12 Black |
| Camera Type | Action Camera |
| Memory | Lexar 64G |
| Stabilization | EIS (Electronic Image Stabilization) |
| Video Recording | 5.3k60 | 4k120 | 2.7k240 |
| Photography | 27MP |
| Sensor Size | 1/1.9 inch |
| Sensor Type | CMOS |
| Internal Battery | Lithium-ion Battery |
| Power Supply | 12VDC, 8W |
| Interface | Ethernet |
| Packing List | Gopro HERO12 Black *1, Original Gopro12 Lithium Battery *1, Deep-sea Pressure Housing *1
Standard 2m seawater-resistant cable (Length customizable up to 70m, contact customer service for longer distances) |

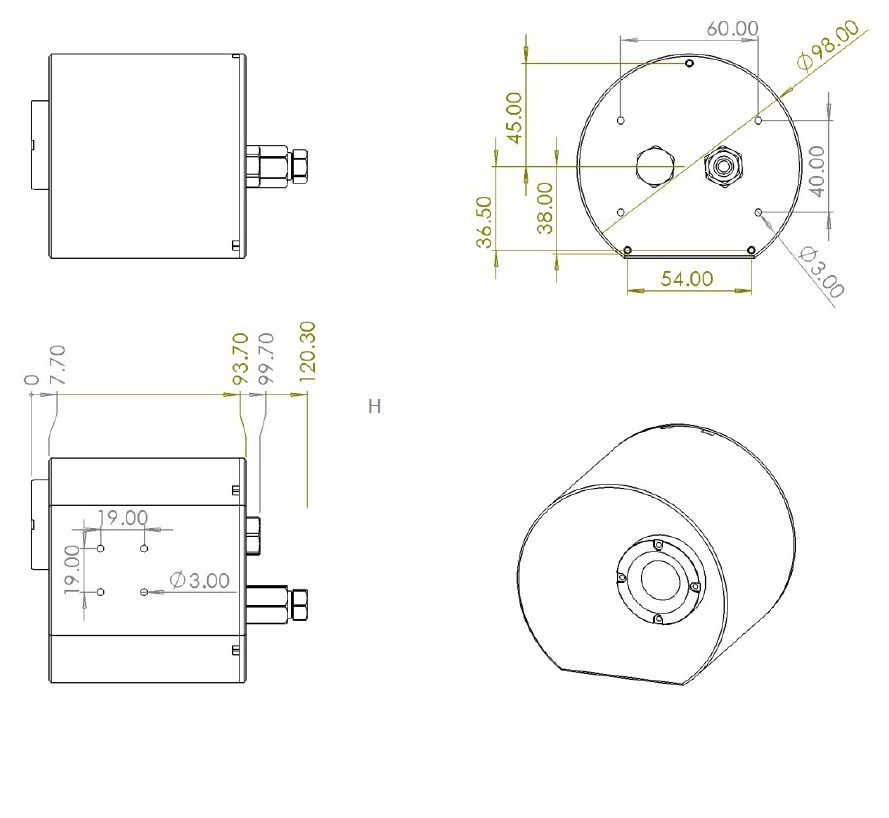

Main Dimensions
Wiring Instructions
| Grey | GND |
| Grey/ White | +12VDC (LED Lighting Power) |
| Blue | GND |
| Blue/White | +12VDC (Camera Power) |
| Green | Rx- |
| Green/White | Rx+ |
| Orange | Tx- |
| Orange/White | Tx+ |
Model Selection Guide
| Resolution | Zoom | Power | Communication | Target Recognition | Depth Perception | |
|---|---|---|---|---|---|---|
| Rpi AI Cam | 8MP | × | 12VDC / 15W | Ethernet | √
(Secondary Dev) |
× |
| GoPro | 27MP | × | 12VDC / 8W | Ethernet | × | × |
| AI-M | 12MP | × | 5 or 12VDC / 3W | Ethernet | √ | × |
| AI-D | 12MP | × | PoE / 5.5W | Ethernet | √ | √ |
| Zoom | 2.13MP | 30x Optical Zoom
12x Digital Zoom |
12VDC / 5.4W | BNC
(75Ω Coaxial) |
× | × |
| Vision
360° |
4MP | 4x Optical Zoom
16x Digital Zoom |
12VDC /
PTZ Camera: 10W Camera + 4 Lights: 60W |
Ethernet | × | × |
