HD Live Video Stream from Subsea 360° PTZ Camera
 |
Product Introduction

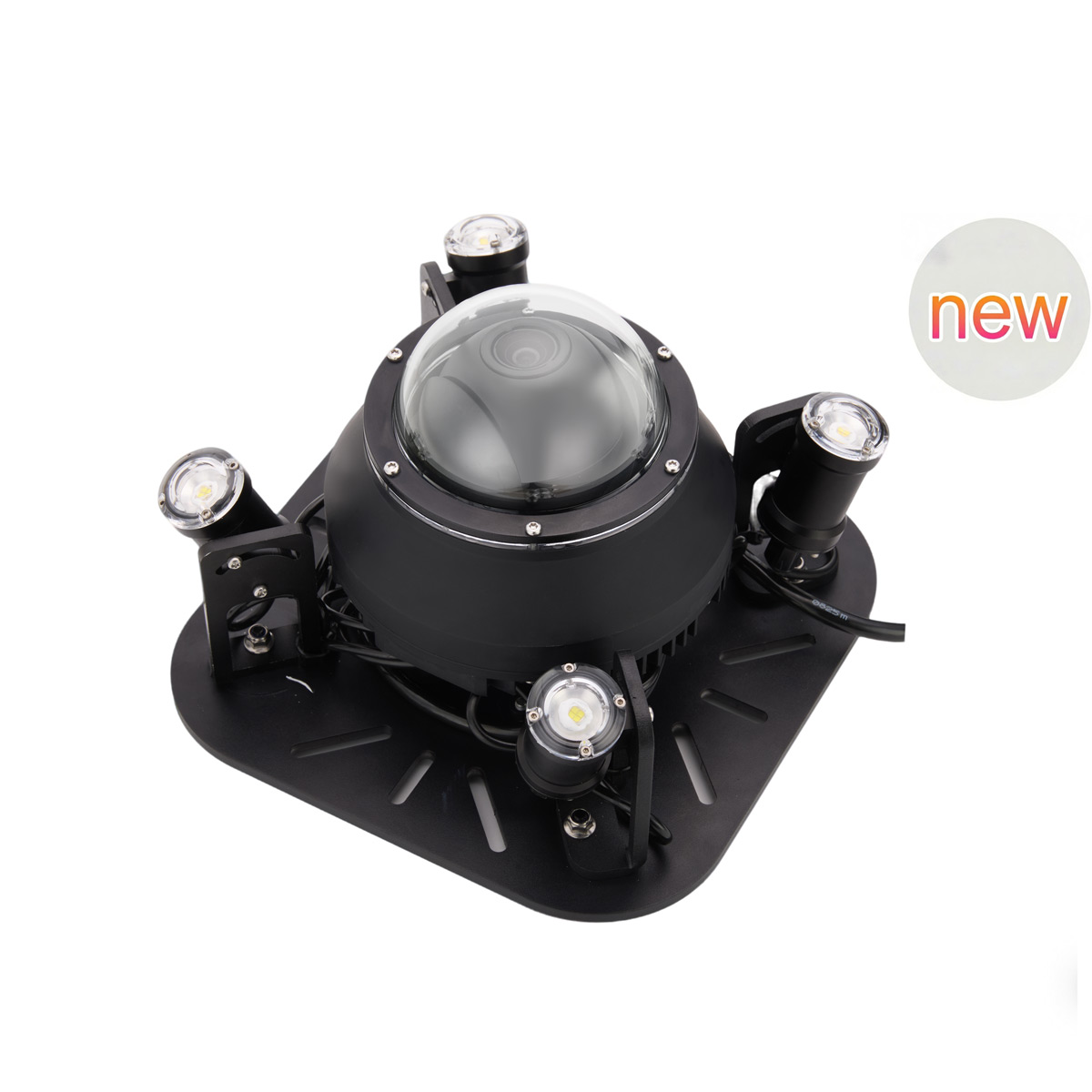

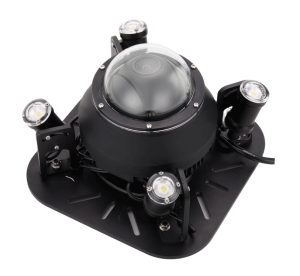

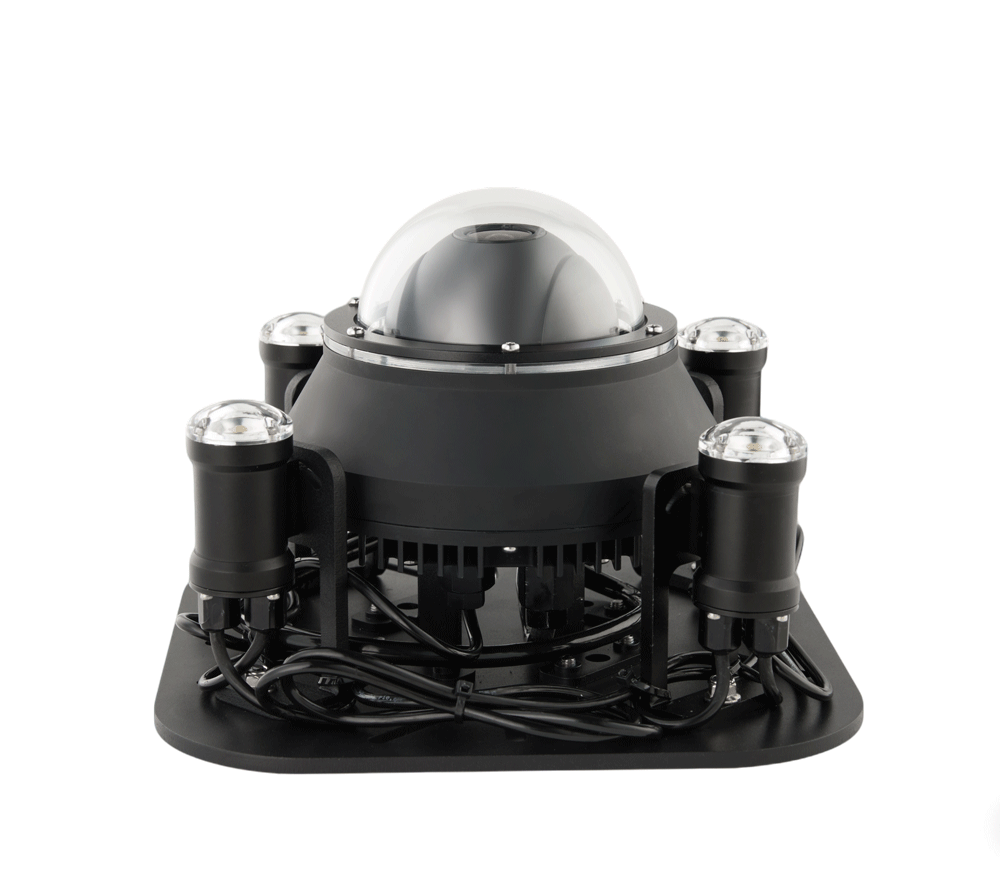

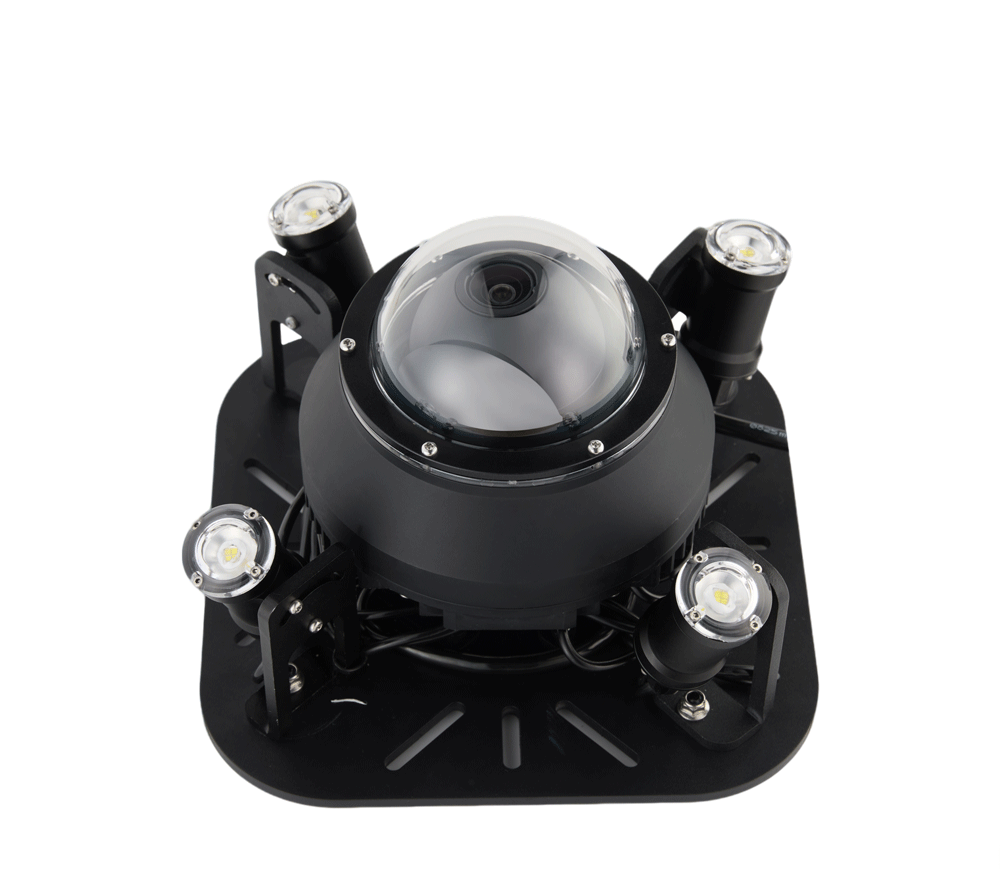

Subsea 360° PTZ Camera | Built to Last
|
Application Scenarios:
- Subsea Monitoring for Marine Protected Areas
- Stationary Surveillance of Subsea Structures & Facilities
- Integration with ROVs, AUVs, and USVs
Main Specifications
| Depth Rating | 300m |
| Weight in Air | Water | 2.0 | 1.1kg |
| Camera Model | DH-SD23D404-DP |
| Camera Type | PTZ Camera |
| Image Sensor | 4MP 1/2.8" CMOS Sensor Sony STARVIS™ |
| Resolution | 2560*1440 Resolution |
| Min. Illumination | Color: 0.005lux@F1.6; B/W: 0.0005lux@F1.6 |
| Pan/Tilt Range | Pan: 355°, Tilt: -5°~90°, no blind spots |
| Zoom | 4x Optical Zoom, 16x Digital Zoom Focal Length: 2.8mm~11.2mm |

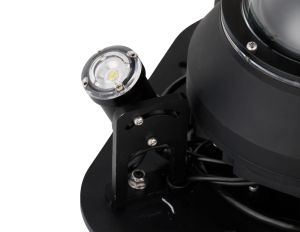

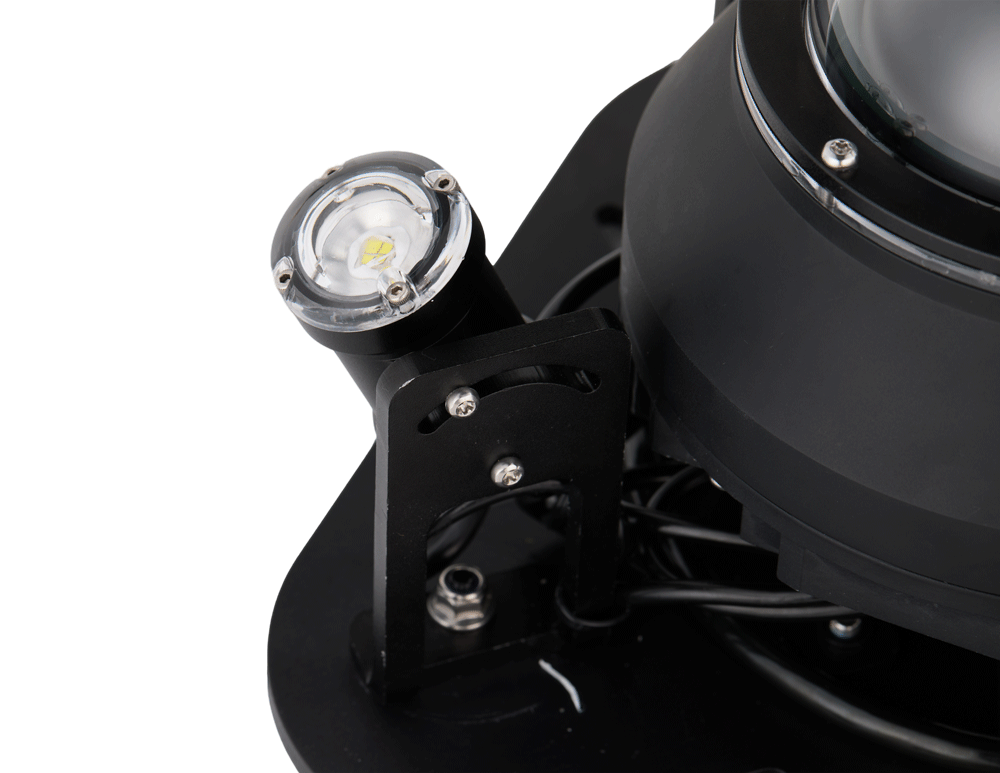

| Lighting (Optional) | 1500LM * 4 adjustable pitch subsea lights + mounting bracket |
| Interface | Ethernet |
| Input Voltage | 110VAC~220VAC or 12VDC±10% |
| Power | Camera only: MAX 10W Camera + 4 lights: MAX 60W |
| Encoding | Smart 265 (faster storage than H.265, reduces lag) |
| Cable | Seawater-resistant cable, 10m standard, up to 70m |
| Packing List | Subsea PTZ Camera *1, AC/DC Power Module *1 Underwater Lights *4 (Optional), Mounting Bracket (Optional) |
| Development | - Supports OpenCV; register at open.dahuatech.com for SDKs, protocol docs, and sample code. - Network SDK: Multi-language packages (C++, Java, C#, Python) for Windows, Linux, and Android. Supports device discovery, config, preview, PTZ control, alarms, and playback. - Standard Protocol Access: Supports GB/T28181, ONVIF, RTSP, and CGI for cross-platform integration without proprietary SDKs. - Web Tools: WebPlugin and ActiveX support for browser-based video preview and PTZ control. |

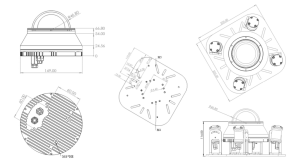

Main Dimensions
Wiring Instructions
| Grey | GND |
| Grey/ White | +12VDC (LED Lighting Power) |
| Blue | GND |
| Blue/White | +12VDC (Camera Power) |
| Green | Rx- |
| Green/White | Rx+ |
| Orange | Tx- |
| Orange/White | Tx+ |
Subsea Cameras Selection Guide
| Resolution | Zoom | Power | Communication | Target Recognition | Depth Perception | |
|---|---|---|---|---|---|---|
| Subsea Open-AI Cam | 8MP | × | 12VDC / 15W | Ethernet | √
(Secondary Dev) |
× |
| Subsea HD Action Cam | 27MP | × | 12VDC / 8W | Ethernet | × | × |
| Subsea Monocular AI Cam | 12MP | × | 5 or 12VDC / 3W | Ethernet | √ | × |
| Subsea Stereo Depth AI Cam | 12MP | × | PoE / 5.5W | Ethernet | √ | √ |
| Subsea Optical Zoom Cam | 2.13MP | 30x Optical Zoom
12x Digital Zoom |
12VDC / 5.4W | BNC
(75Ω Coaxial) |
× | × |
| Subsea PTZ 360° Cam | 4MP | 4x Optical Zoom
16x Digital Zoom |
12VDC /
PTZ Camera: 10W Camera + 4 Lights: 60W |
Ethernet | × | × |
