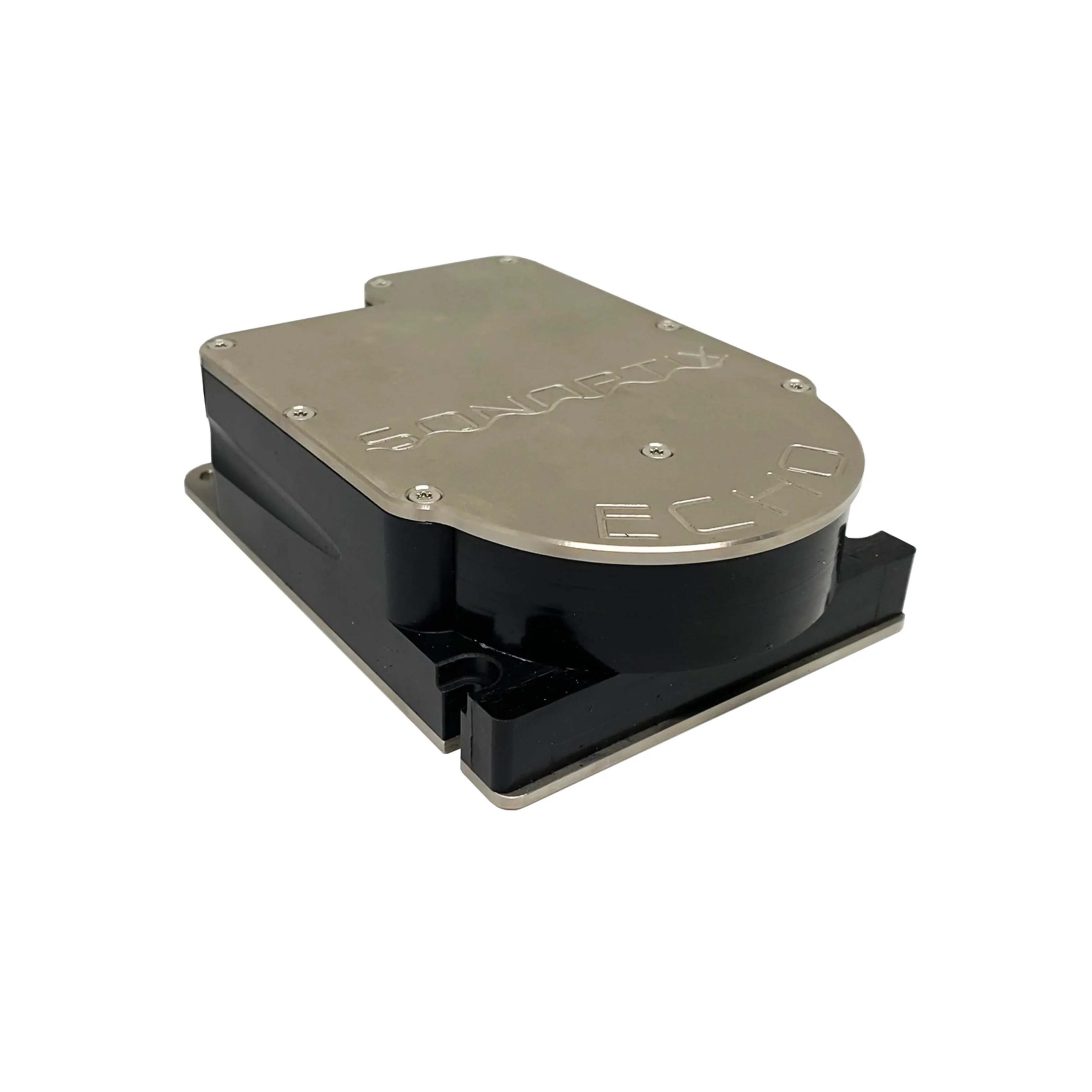

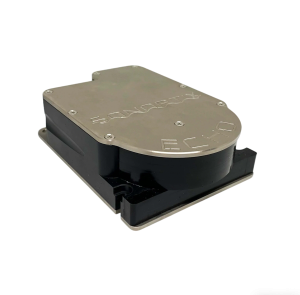

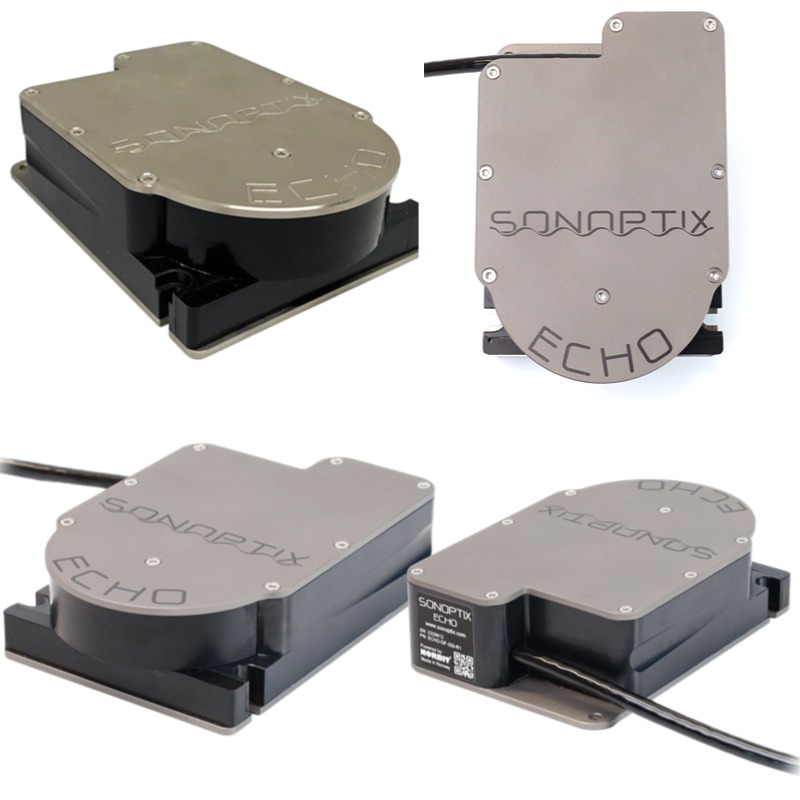

Multibeam Imaging Sonar Sonoptix Echo
 |
Product Introduction
Dual-Frequency Multibeam Forward-Looking Imaging Sonar
A high-performance, dual-frequency (400/700 kHz) multibeam imaging sonar designed for large-scale underwater target searches, even in highly turbid waters. · 700 kHz High Frequency: Provides ultra-fine scanning resolution for detailed imaging within a 50m short-range. Applications： |

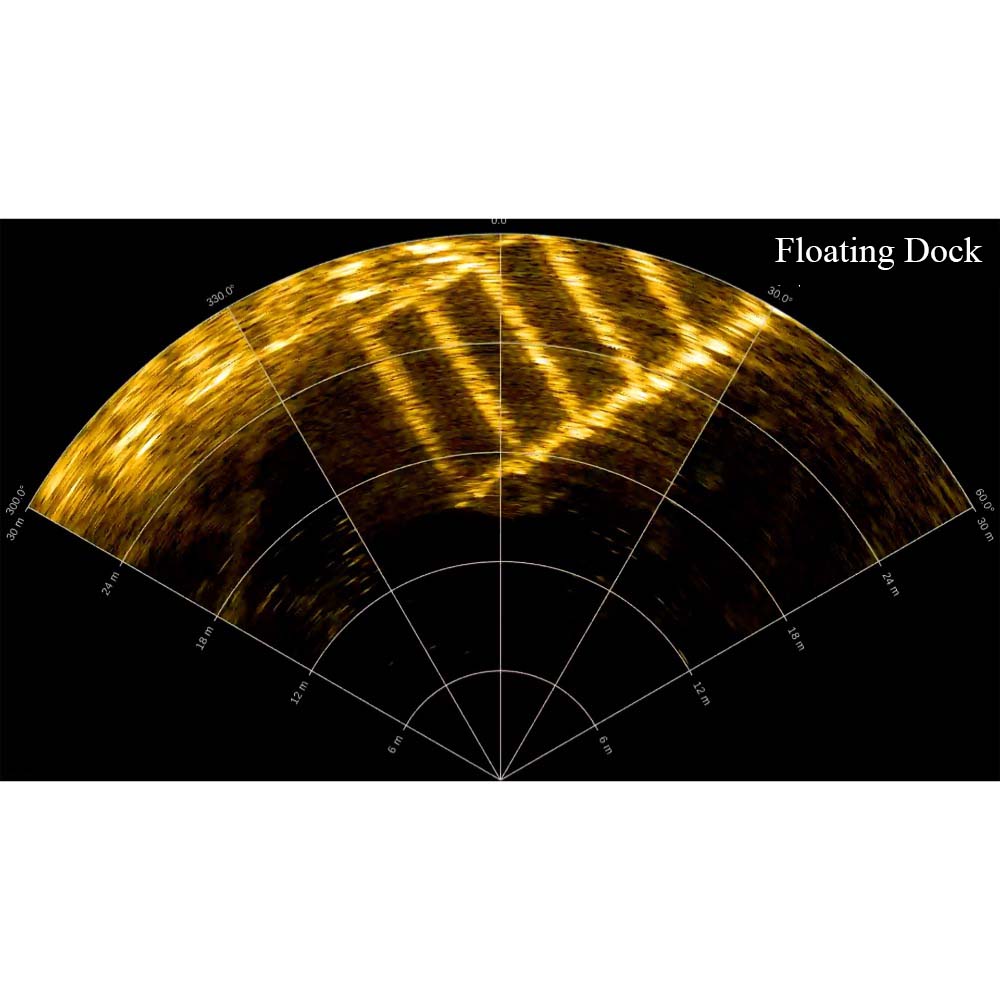

Imaging Performance

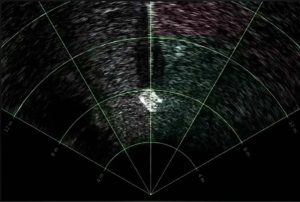

Lobster Pot

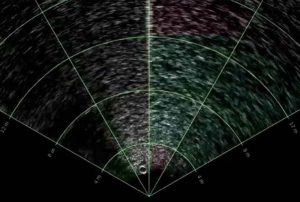

Tire
Technical Parameters
| Parameter | Specification | Parameter | Specification |
| Depth Rating | 350 m | Angular Resolution | 1.5° / 2.5° |

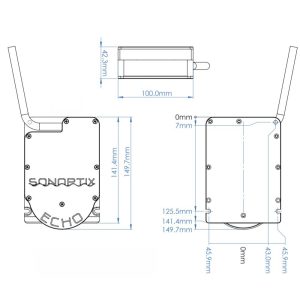

| Dimensions | 149.7×100×42.3mm | Beam Separation | 0.47° |
| Weight | 0.78 kg (Air) / 0.24 kg (Water) | Power Consumption | 5W-25W |
| Operating Frequency | 400kHz (>30m)
700kHz (<30m) |
Supply Voltage | 11V-28V |
| Range Resolution | <8mm | Communications | Ethernet |
| Maximum Range | 200m @400kHz
50m @700kHz |
Connector/Cable | 2m Whip (Unterminated)
7mm Diameter Polyurethane Jacket |
| Minimum Range | <0.2m | Integrated Sensors | Compass |
| Maximum Update Rate | 25Hz | Temperature Range | 0°C to +35°C |
| Horizontal View Angle | 90° @400kHz
120° @700kHz |
Construction Material | Titanium & Delrin |
| Vertical View Angle | 20° | Data Output | Video/Raw Data |
| Number of Beams | 256 | Country of Origin | Norway |
