Underwater Altimeter Echo Sounder
 |
Product Introduction

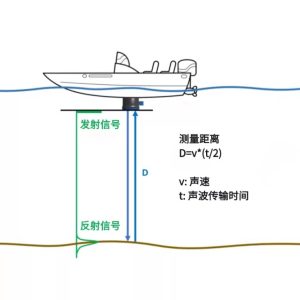

Underwater Altimeter – Single-beam Ranging & Echo Sounding

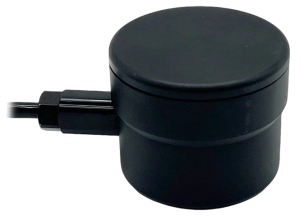

This is a high-performance single-beam sonar echosounder with a 100 m range. It is designed for mounting on vessel hulls, Remotely Operated Vehicles (ROVs), or other underwater platforms.
● Physical Specifications：
Depth Rating：300 m；
Operating Temperature：0~30 ℃；
Weight in Air (with cable)：187 g；
Weight in Water (with cable)：100 g；
● Acoustic Specifications：
Operating Frequency：115 kHz；
Beam Width：25°；
Measurement Range：0.3m~100m；
Distance Resolution：0.5% of the measured range；
|
|
Underwater Altimeter – Single-beam Ranging & Echo Sounding
● Electrical Specifications：
Supply Voltage：4.5~5.5V；
Logic Level：3.3V（Compatible with 5V）；
Current Consumption：100mA（Typical），900mA（Peak）；
● Communication Parameters：
Signal Protocol：TTLSerial（UART）；
Baud Rate：115200 bps（Default）、9600 bps.
|
|
