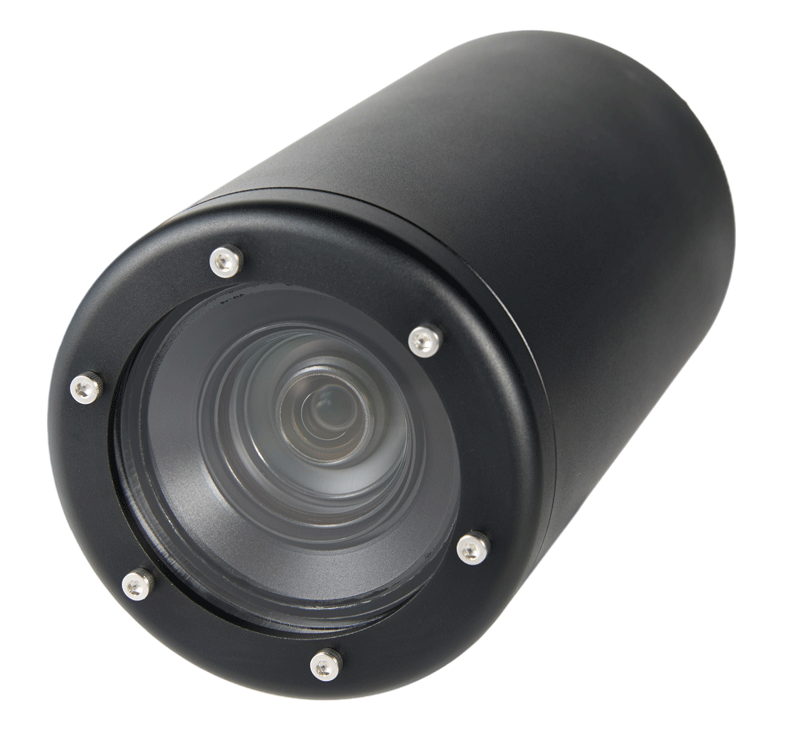

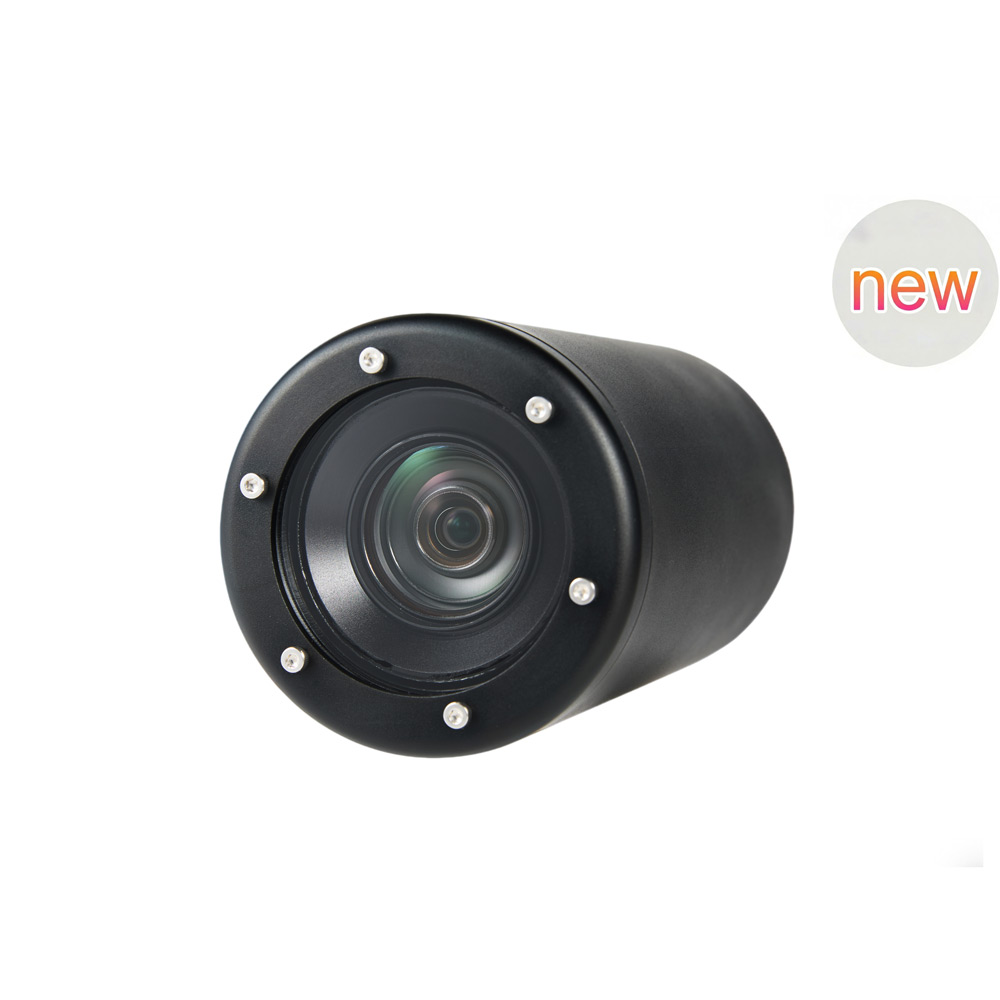

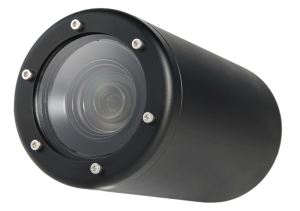

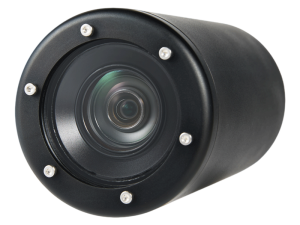

Product Introduction
Optical Zoom: Capture distant details without losing image quality ● SONY industrial-grade zoom module ● 20x motorized optical zoom, maintaining 1080P HD resolution |
● Clear observation of distant targets
● Essential for large-scale deep-sea operation systems
Main Specifications
| Depth Rating | 300m |
| Mass in Air | |
| Mass in Water | |
| Module Model | Sony FCB-EV7320 |
| Image Sensor | 1/2.8-type Exmor R CMOS |
| Effective Pixels | Approx. 2.13 Megapixels |
| Output Resolution | 1080p (1920 x 1080) @ 60/50/30/25 fps
720p @ 60/50/30/25 fps |
| Min. Illumination | High Sensitivity Mode: 0.01 lx (F1.6, AGC On, 1/30s).
Normal Mode: 0.1 lx (F1.6, AGC On, 1/30s). |
| S/N Ratio | More than 50 dB |
| Optical Zoom | 20x Optical Zoom |
| Digital Zoom | 12x (Up to 240x with optical zoom) |
| Focal Length | f = 4.7mm (wide) to 94.0mm (tele) |
| Aperture | F1.6 to F3.5 |
| Angle of View (HFOV) | 1080p mode: 59.5° (wide) to 3.3° (tele)
720p mode: 59.5° (wide) to 3.3° (tele) SD mode: 44.6° (wide) to 2.5° (tele) |
| Min. Object Distance | 10mm (wide) to 1000mm (tele) |
| Gain | Auto / Manual (0 to 28 steps, +2 steps / 15 steps total)
Max. Gain Limit (6 to 28 steps, +2 steps / 12 steps total) |
| Shutter Speed | 1/1s to 1/10,000s, 22 steps |
| Sync System | Internal |
| Exposure Control | Auto, Manual, Priority mode (Shutter/Aperture priority),
Brightness, EV compensation, Slow AE |
| Backlight Compensation | Yes |
| Aperture Control | 16 steps |
| White Balance | Auto, ATW, Indoor, Outdoor, Outdoor Auto,
Sodium Vapor Lamp (Fix/Auto/Outdoor Auto), One-push, Manual |
| Focus System | Auto (Sensitivity: Normal, Low), One-push AF, Manual, Interval AF,
Zoom Trigger AF, Focus Compensation in ICR On |
| Visibility Enhancer | Yes |
| Noise Reduction | Yes (6 steps) |
| Video Output | BNC (75Ω coaxial cable) |
| Control Interface | VISCA Protocol (CMOS 5V level) |
| Power Supply | 6.0V to 12.0V DC |
| Power Consumption | Approx. 3.2 W (Static) / 3.6 W (Zoom/Focus) |
| Packing List | Zoom Underwater Camera *1, standard 2m seawater-resistant cable, customizable cable length up to 300m (consult customer service for details) |

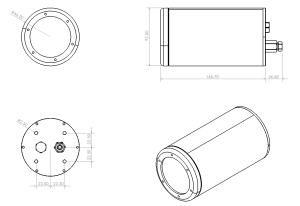

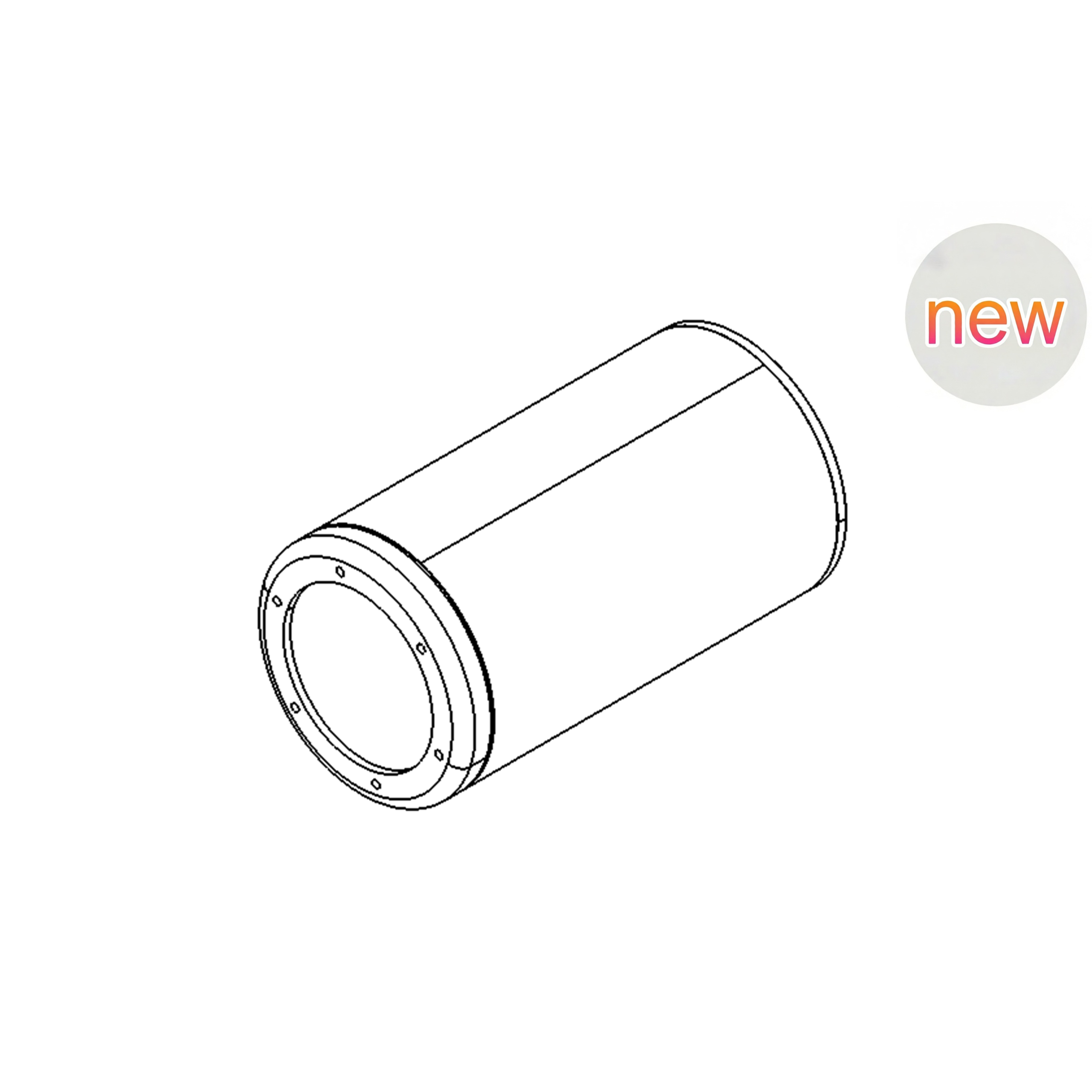

Main Dimensions

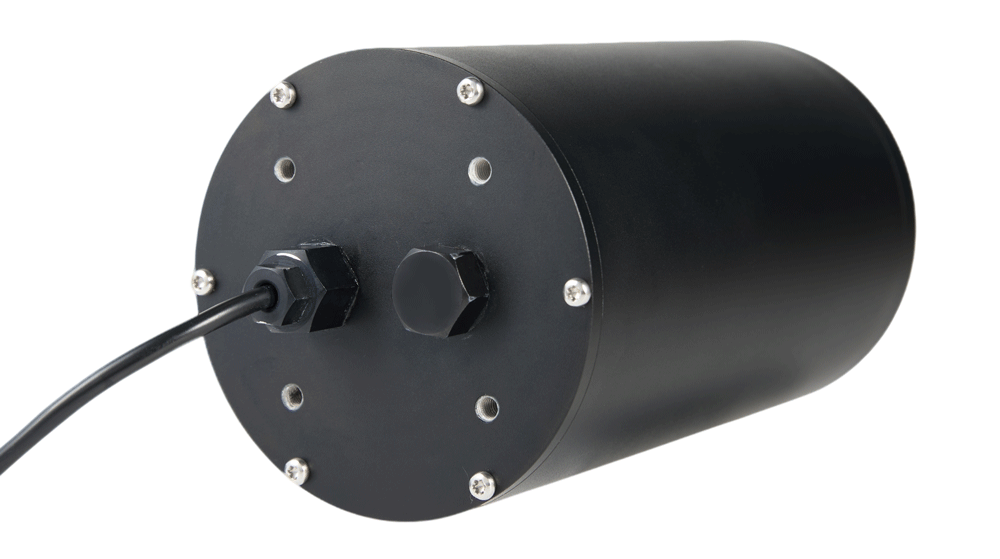

Wiring Instructions
| Black | GND |
| Red | +12VDC |
| Blue | Reserve |
| Blue/White | Reserve |
| Green | Rx- |
| Green/White | Rx+ |
| Orange | Rx- |
| Orange/White | Rx+ |
Model Selection Guide
| Resolution | Zoom | Power | Communication | Target Recognition | Depth Perception | |
|---|---|---|---|---|---|---|
| RPI | 8MP | × | 12VDC / 15W | Ethernet | √
(Secondary Dev) |
× |
| GoPro | 27MP | × | 12VDC / 8W | Ethernet | × | × |
| AI-M | 1.55µm x 1.55µm | × | 12VDC / 3W | Ethernet | √ | × |
| AI-D | 1.55µm x 1.55µm | × | 12VDC / 3.5W | Ethernet | √ | √ |
| Zoom | Approx. 2.13MP | 20x Optical Zoom
12x Digital Zoom |
12VDC / 3.6W | BNC
(75Ω Coaxial) |
× | × |
| Observer | 4MP | 4x Optical Zoom
16x Digital Zoom |
12VDC /
PTZ Camera: 10W Camera + 4 Lights: 60W |
Ethernet | × | × |
