Name: SBL acoustic positioning system
Brand: Cerulean
SKU: 10264
Availability: InStock

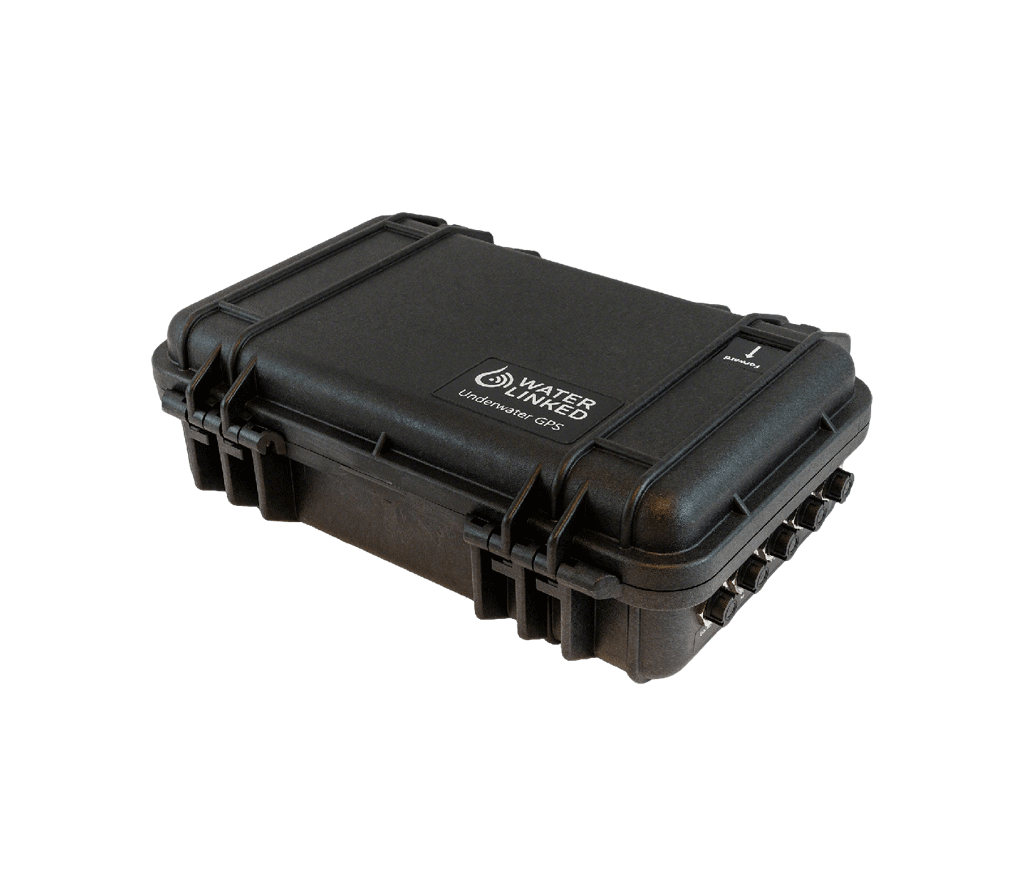

SBL acoustic positioning system

$10,855.00

SBL Underwater Positioning System is particularly suitable for shallow water operations, supporting ROVs and AUVs within a 100m range for underwater positioning and navigation.

Positioning Range: Effective detection distance of 100 meters, ideal for shallow water and engineering inspection scenarios.
Lightweight Deployment: Requires only a few compact receivers deployed on a surface vessel (typically the hull), with no tedious calibration needed.
Real-time Performance: Provides high-speed and high-frequency position updates, facilitating dynamic tracking of submersibles.

SBL Underwater Positioning & Acoustic Accessories for ROVs

Product Introduction

SBL Underwater Positioning System

SBL Underwater Positioning System is particularly suitable for shallow water operations, supporting ROVs and AUVs within a 100m range for underwater positioning and navigation.

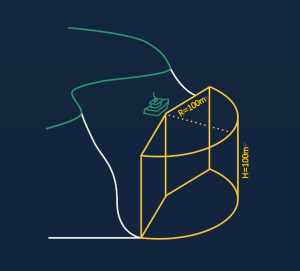

● Positioning Range: Effective detection distance of 100 meters, ideal for shallow water and engineering inspection scenarios.

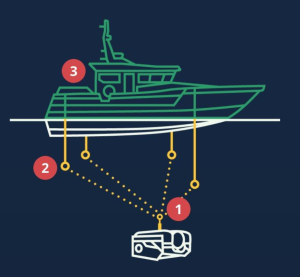

● Lightweight Deployment: Requires only a few compact receivers deployed on a surface vessel (typically the hull), with no tedious calibration needed.
● Real-time Performance: Provides high-speed and high-frequency position updates, facilitating dynamic tracking of submersibles.

Parameters
Input Voltage:	10~18 VDC
Effective Detection Distance:	100 m
Pulse Frequency:	2 Hz
Sensor Pressure Rating:	300 m
Accuracy:	Horizontal Distance: ＜ 0.2% Horizontal Angle: ＜ 1° Vertical Range: ＜ 1%
Frequency:	31.25~250 kHz (Typical 200 kHz)
Directivity:	Omni-directional
Working Principle:	Time of Flight (TOF), Triangulation
Working Temperature:	-10 ℃ ~ 60 ℃

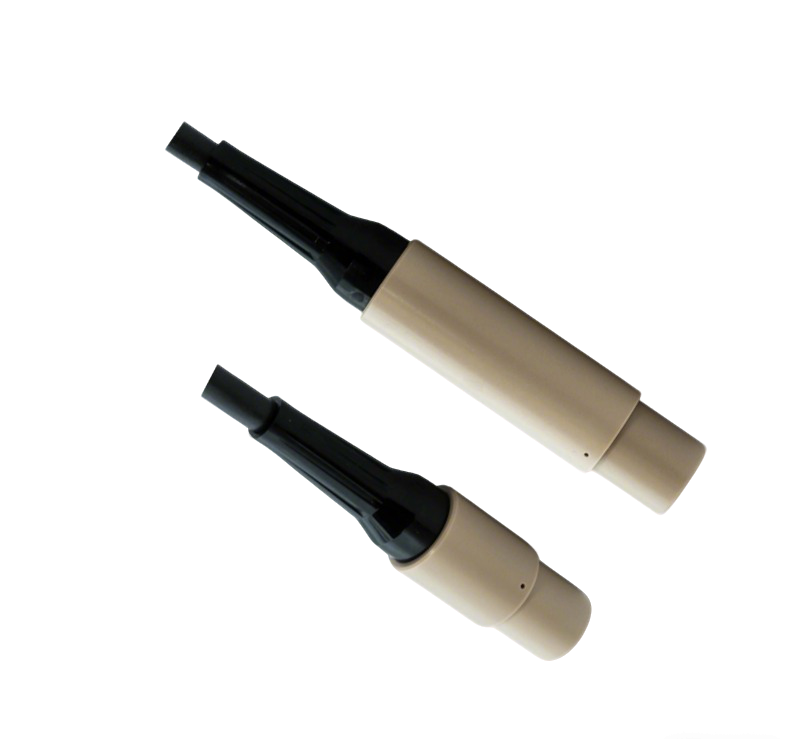

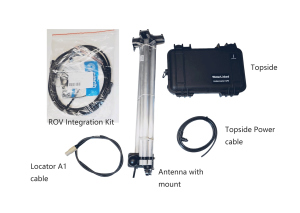

Transmitter A1 (Transmit):	1 Unit
Receiver D1 (Receive)	4 Units
