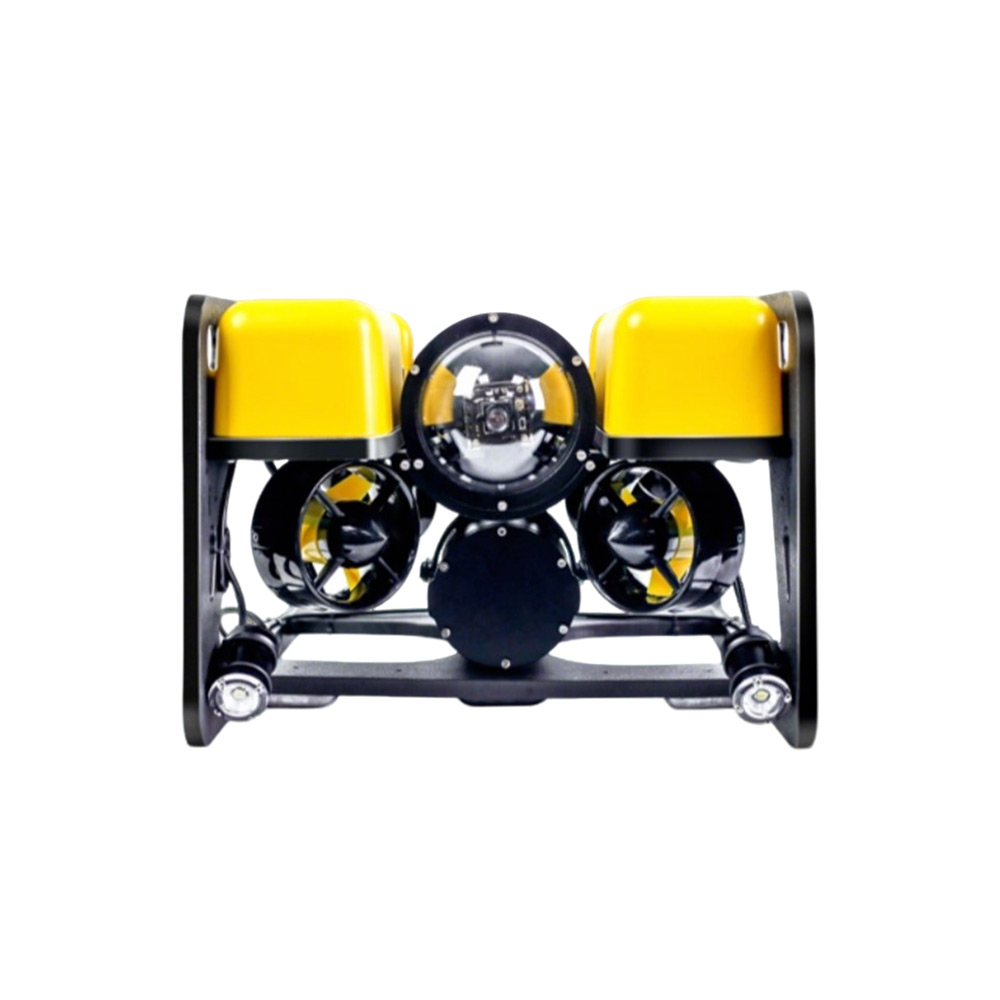

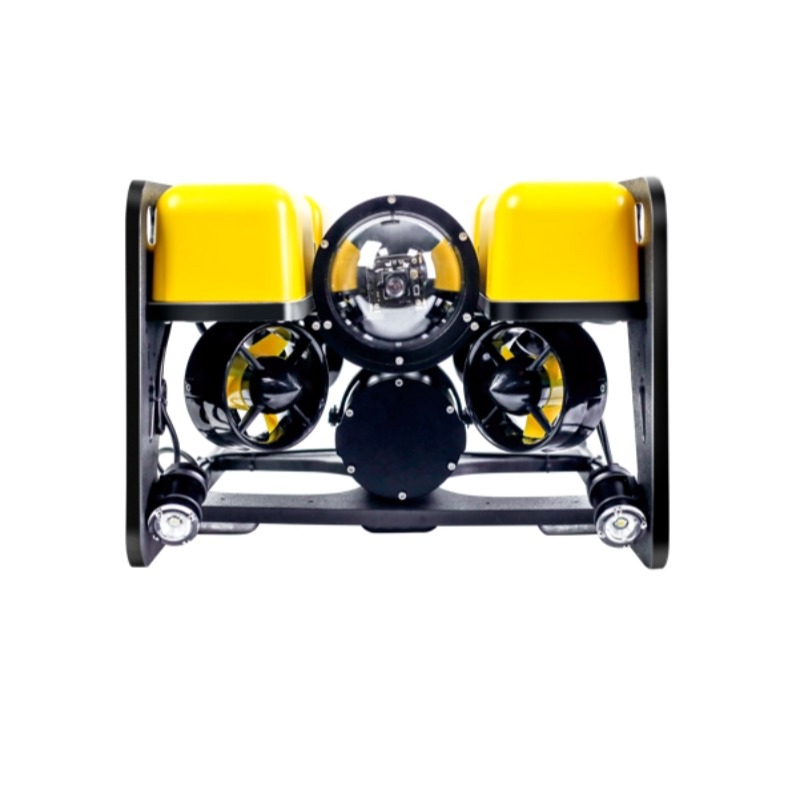

Portable Underwater ROV (Battery Powered)

Price range: $2,499.00 through $3,483.00

Ready to Dive Pack. Price include 1*HX-300-II submersible, 100 meter neutral buoyancy tether,1*6s9p Li-ion battery pack, 1*balance charger and 1*surface comm hub .

Depth Rating of 300m with Aluminum housing
12kg, one person portable & deployable, easy retrieval
Effortless operation with AI assisted driving
10+ accessories for more application scenarios;
Power boosted by 50% for severe working conditions.

Please select umbilical cable length, manipulator and other accessories:

2 core cable

Clear

Please Choose Accessories

Multiple Choices Apply

Cable Reel (Small) $184.00

Neutral Buoyant Tether (per 100m) $62.00

1-Way ROV Manipulator $860.00

Li-ion Battery Pack 6S9P $369.00

Rugged ROV Transportation Case $615.00

Product price:	$2,499.00
Total options:
Order total:

Description
Additional information

PRODUCT DESCRIPTION

Charpie Underwater ROV is a professional-grade, modular underwater robot designed for reliable inspection and exploration. Available in three- or six-thruster configurations, it delivers precise control and strong maneuverability. An open-source software architecture and expandable accessory ecosystem enable flexible customization for diverse missions. Equipped with a tilt-adjustable 1080p HD camera and 3,000-lumen dimmable lighting, Charpie ROV provides clear, stable visuals even in challenging underwater environments. Deployed in numerous operations worldwide, it is a trusted platform for commercial and research applications.

BUILD THE ROV YOU NEED

CharpieROV features a rugged, open-frame design optimized for modular expansion. The structure supports rapid integration of tools such as grippers, imaging sonar, and custom sensors, with an optional payload skid for larger or additional payloads, including extended battery modules.

Designed as a flexible underwater platform, CharpieROV supports a broad range of applications, including:

● Search and recovery
● Infrastructure and asset inspection (dams, pipelines, hulls)
● Aquaculture and fisheries monitoring
● Environmental and marine research
● Photogrammetry and 3D mapping
● Public safety and emergency response
● Education, training, and prototyping
● Technology development and system integration

CONFIGURING YOUR NEEDS

The HX-300-B is our most affordable ROV model, powered by an onboard battery system. It supports manual control, depth-hold, and heading-hold operation, and can be equipped with a wide range of payloads—including a manipulator arm, sonar, and water quality sensors. With support for secondary development and customization, it is an ideal choice for university research, individual users, and applications that do not require long-duration operations.

Comparing HX ROVs

Category		HX-300-Mini	HX-300-B(Battery Powered) HX-300-S(Surface Powered)	HX-300-Pro
Frame Parameters	Dimensions (mm)	522 * 203 * 240	507 * 379 * 280(B) 432 * 327 * 194(S)	Customizable
	Weight (kg)	9	12.5(B) 7.7(S)	Customizable
	Operating Depth(m)	300(Standard) deeper depths supported via customization
Propulsion System	Thrusters	2 Horizontal 1 Vertical	4 Horizontal 2 Vertical	4 Horizontal 2 Vertical
	Max Speed	4 knots
	Payload Capacity	5kg	10kg	30kg
	Control System	Main Processor: STM32F427,32-bit ARM Cortex-M4, running NuttX RTOS. 3-Axis Gyroscope x2(MPU6000+L3GD20H) 3-Axis Accelerometer x2(MPU6000+LSM303D)
	Control Modes	Depth Hold/Auto-Level/Manual
Camera & Lighting	Underwater Lights	Standard:2×1500 LM high-brightness LED lights, adjustable brightness(Customizable)
	Camera	Gimbal Tilt:±50° Sensor: Sony IMX219 Pixel:8MP CCD Size: 1/4″ Aperture(F):2.0 Focal Length:3.04 mm Field of View: 76° Focus: Manual Video Support:1080p30/720p60/640 * 480p90
Comm. & Power Supply	Power Method	Optional: Battery or Surface Power
	Endurance	Battery:2.5-8 hours Surface Power: Theoretically Unlimited
	Cable	Standard: 100m(Reel purchased separately) Customizable up to 2 km
Remote Control	Surface Unit	Standard
	Computer	User-provided(Windows 10+ or Ubuntu 22.04+)
	Software	Standard(Compatible with MAVLink protocol)
Optional Configurations		Manipulator/GoPro/Auxiliary Camera/ Imaging Sonar /Altimeter/ Pipe Sonar/ Underwater Positioning/ Water Quality Sensor/etc.
Customization		Communication Interfaces: USB/RS-485/ RS-232/ UART/ Ethernet, etc. Power:5VDC/12VDC/24VDC/220VAC,etc.
