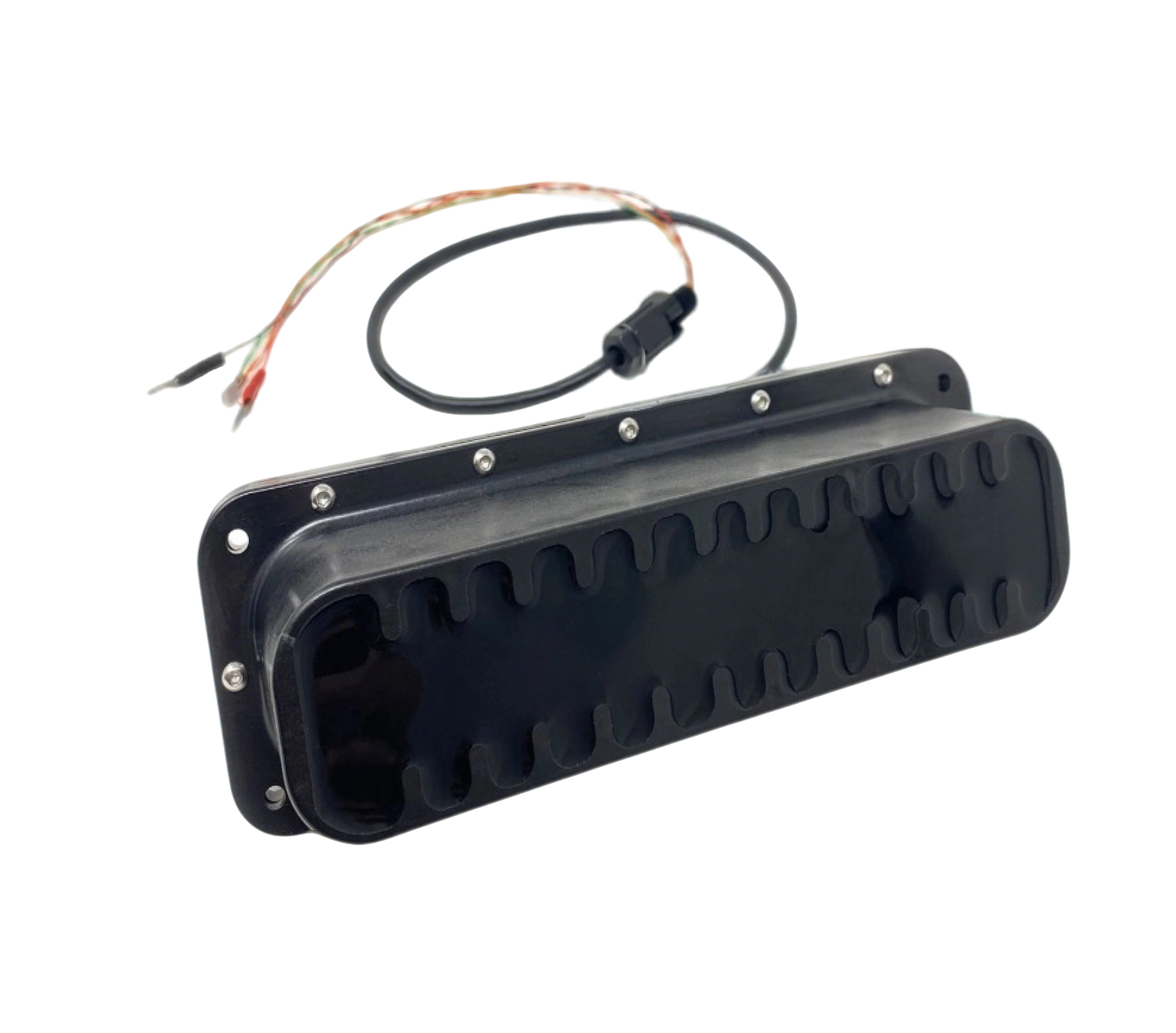

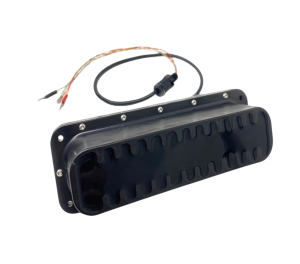

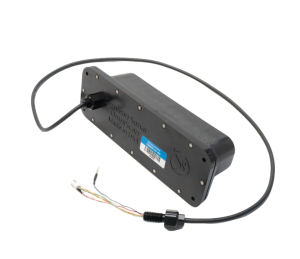

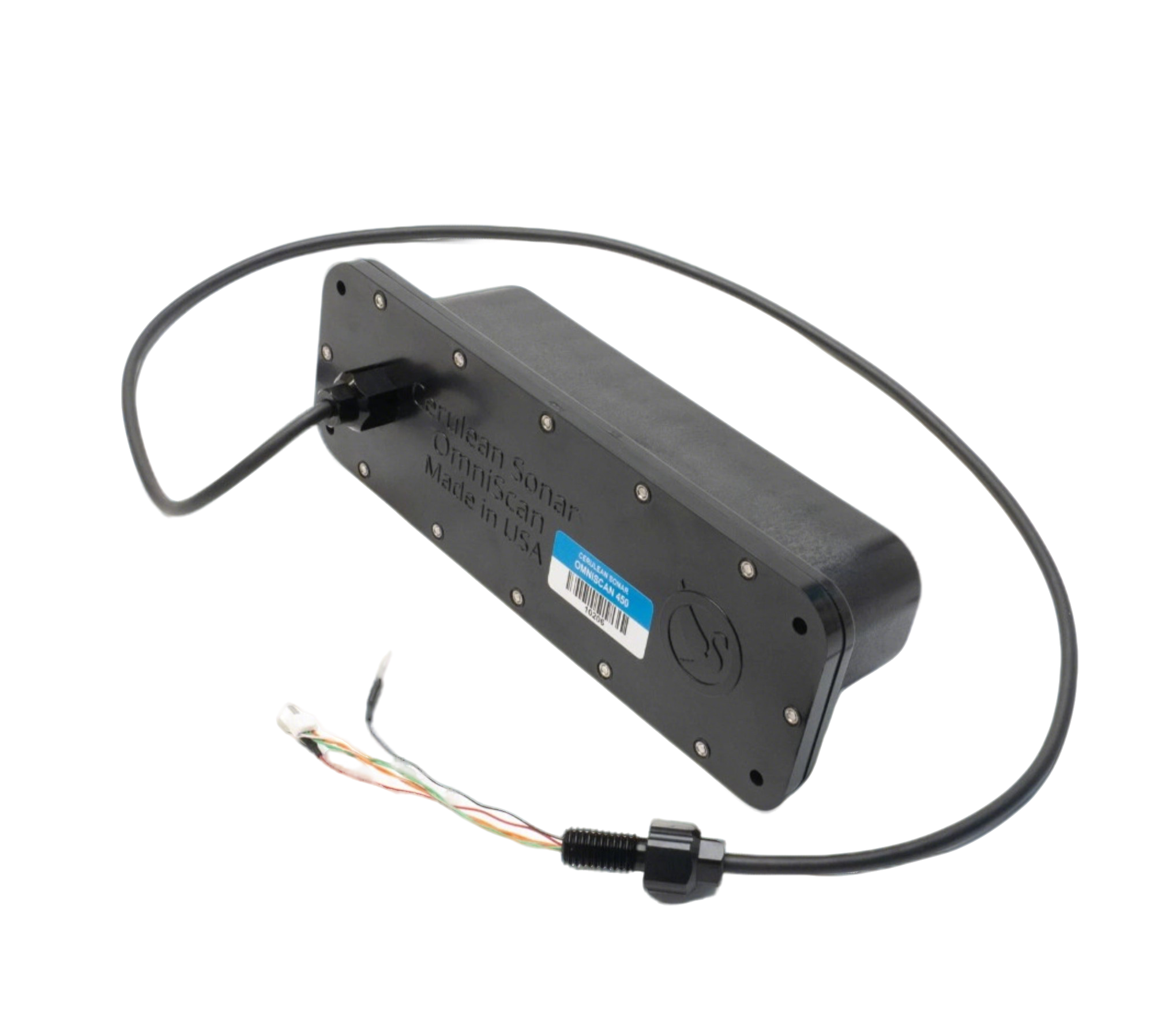

Name: Forward-Looking Imaging Sonar Omniscan450FS (450kHz)
Brand: Cerulean
SKU: 9459
Availability: InStock

Product Introduction

Forward-Looking Imaging Sonar & Multibeam Ranging

A high-performance imaging sonar purpose-built for Remotely Operated Vehicles (ROVs). With a depth rating of 100m / 300m, it offers streamlined installation and exceptional reliability.

● Dual-Unit Configuration：

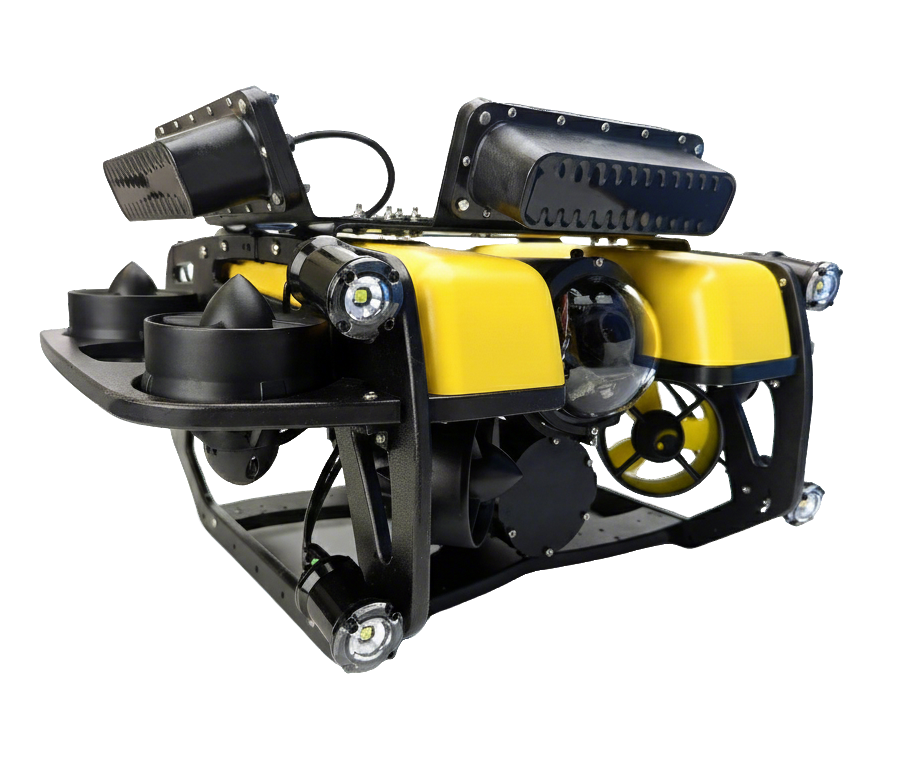

By utilizing a dual-sonar setup (Forward-looking + 90° Sideward-looking), the system enables 2D omnidirectional motion tracking. When integrated with advanced algorithms, it unlocks Station Keeping (Position Hold) mode, significantly enhancing the operational autonomy of the ROV.

● Flexible and Efficient Control：

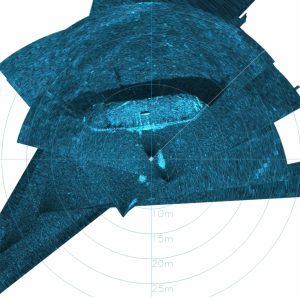

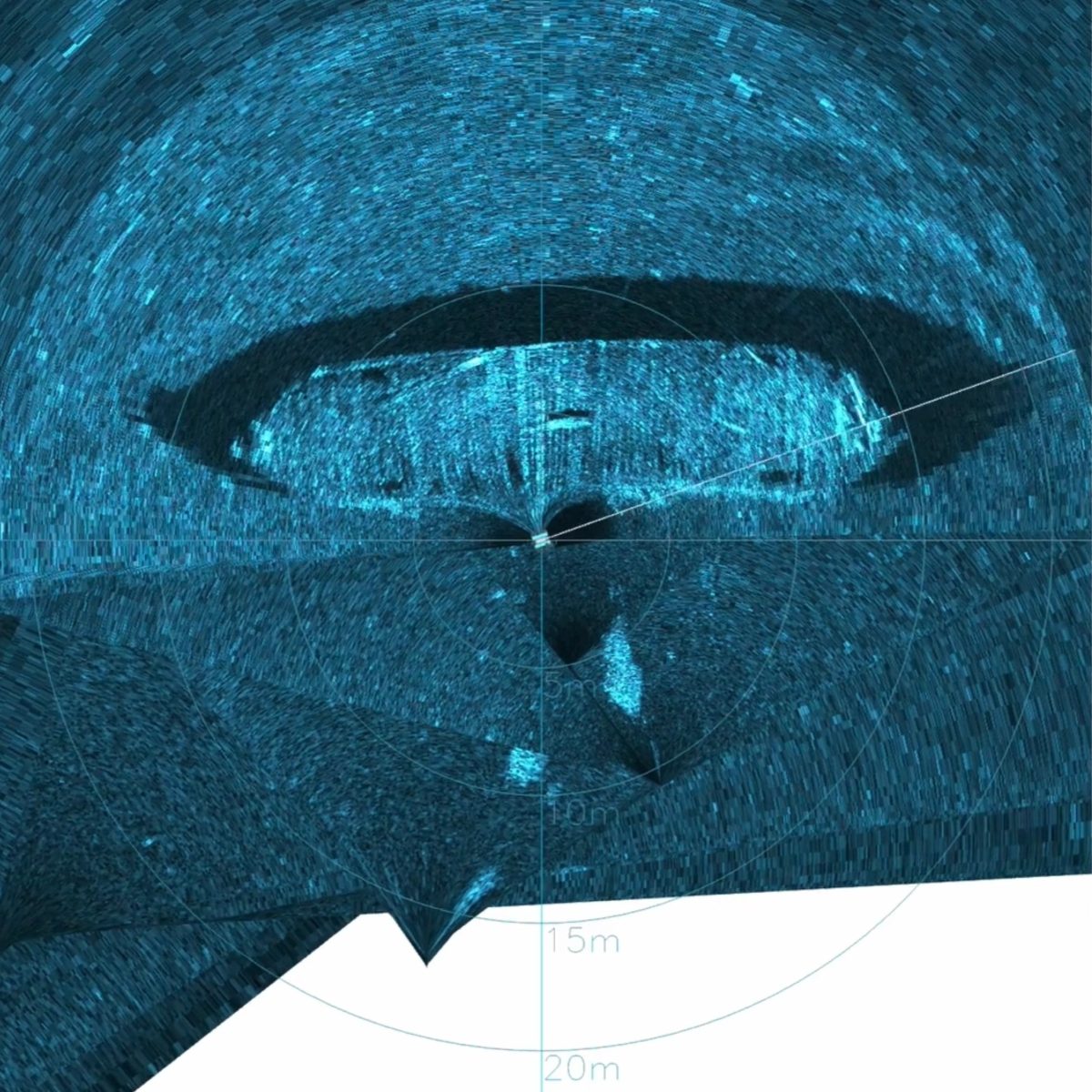

Departing from traditional mechanical scanning, this sonar provides dynamic real-time imaging that moves in sync with the ROV. Powered by SonarView software for real-time rendering, it allows operators to focus on target areas with precision, ensuring crystal-clear situational awareness even in highly turbid waters.

Forward-Looking Imaging Sonar & Multibeam Ranging

● Exceptional Detection Performance：

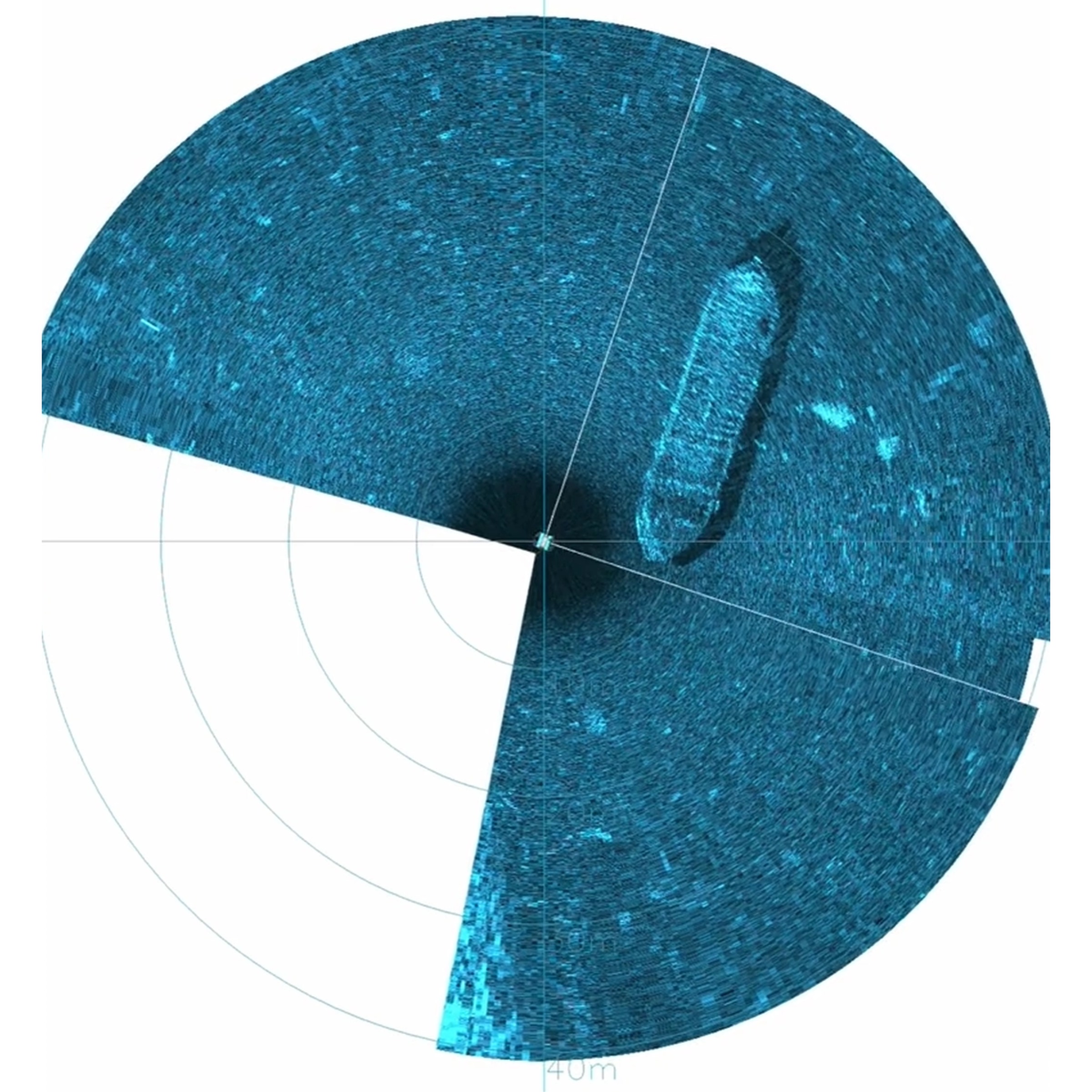

Featuring an ultra-long detection range of 100 meters, this sonar remains unaffected by turbid water conditions. Its 50° vertical beam angle covers both the area directly ahead and below the vehicle, capturing target details with extreme clarity. The imaging quality rivals multibeam forward-looking sonars priced 10 times higher (refer to the “Comparison Video with 750d”), making it the ideal choice for shipwreck searches and underwater navigation.

● Doppler Positioning Expansion：
Supports Doppler positioning and tracking, providing beam-directional translation data for ROVs not equipped with a DVL (Doppler Velocity Log).

Specifications
Operating Frequency：	450kHz
Range Resolution:	Up to 1/1200 of the range
Power Supply:	10-30 VDC (Standby: 5W; Max Power: 10W)
Data Interface:	Ethernet
Max Range:	100 m
Beam Width:	0.8°
Beam Height:	50°
Max Operating Depth:	100 m / 300 m
Weight (In Air):	100m：440g；300m：825g
Weight (In Water):	100m：-60g（Negative Buoyancy）； 300m：+325g（Positive Buoyancy）
Dimensions：	5567200 mm
