Name: ROV Cable Reel (With Slip Rings)
Brand: Charpie
SKU: 5969
Availability: InStock

ROV Cable Reel (With Slip Rings)

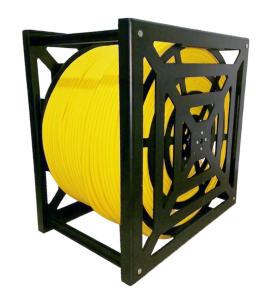

Underwater ROV accessory, a compact size manual cable reel with 8-pole slip ring. Winding Capacity：

Price does not include the tether.

PRODUCT DESCRIPTION

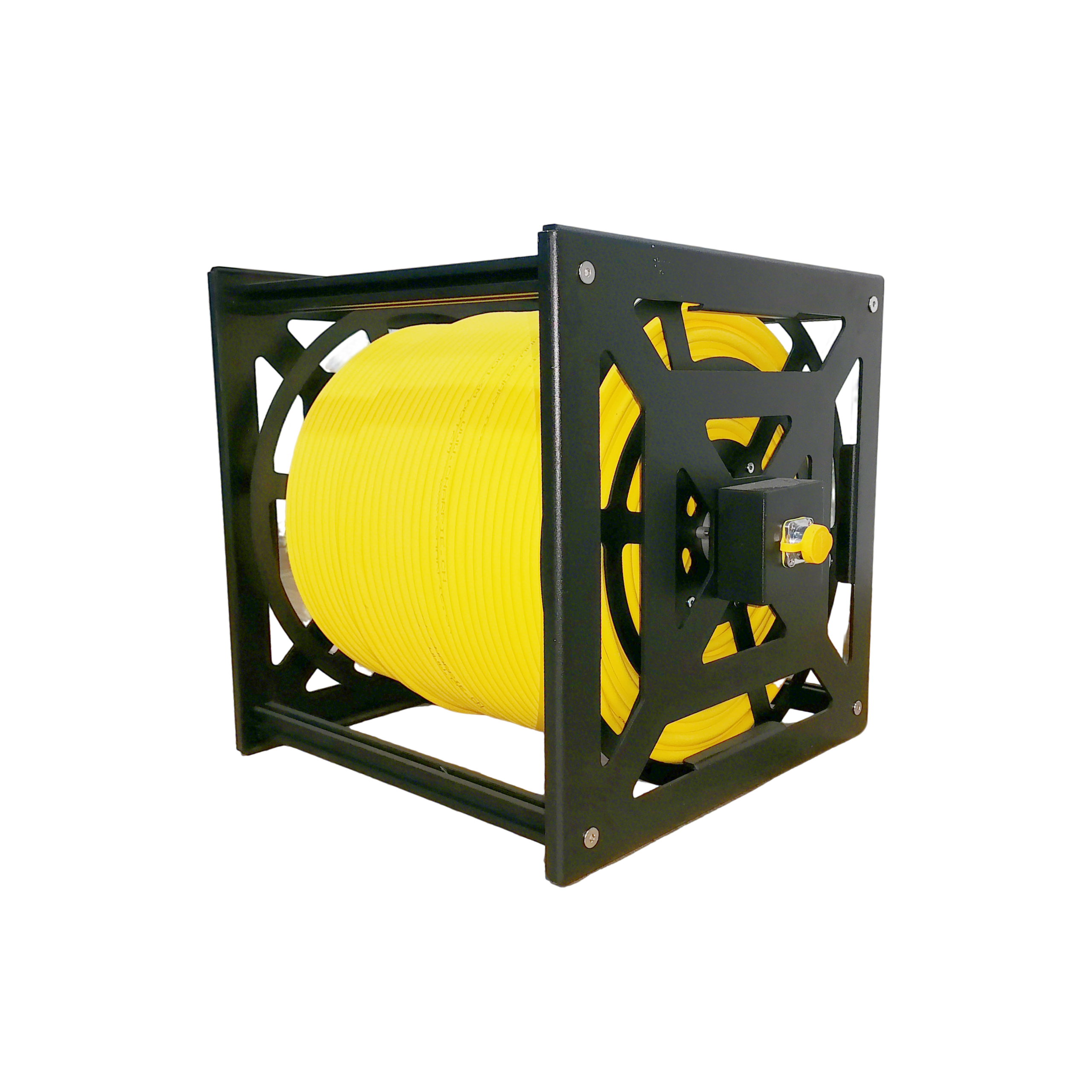

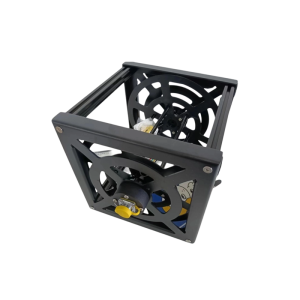

Cable Reel (S)

● Weight: 2.4 kg
● Outer Diameter 300 mm，Width 130 mm
● Capable of 500m cable with 4mm O.D.
● Capable of 100m cable with 8mm O.D.

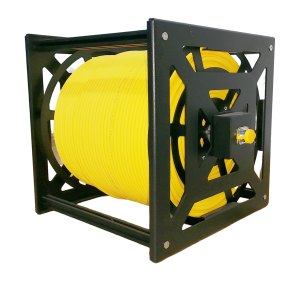

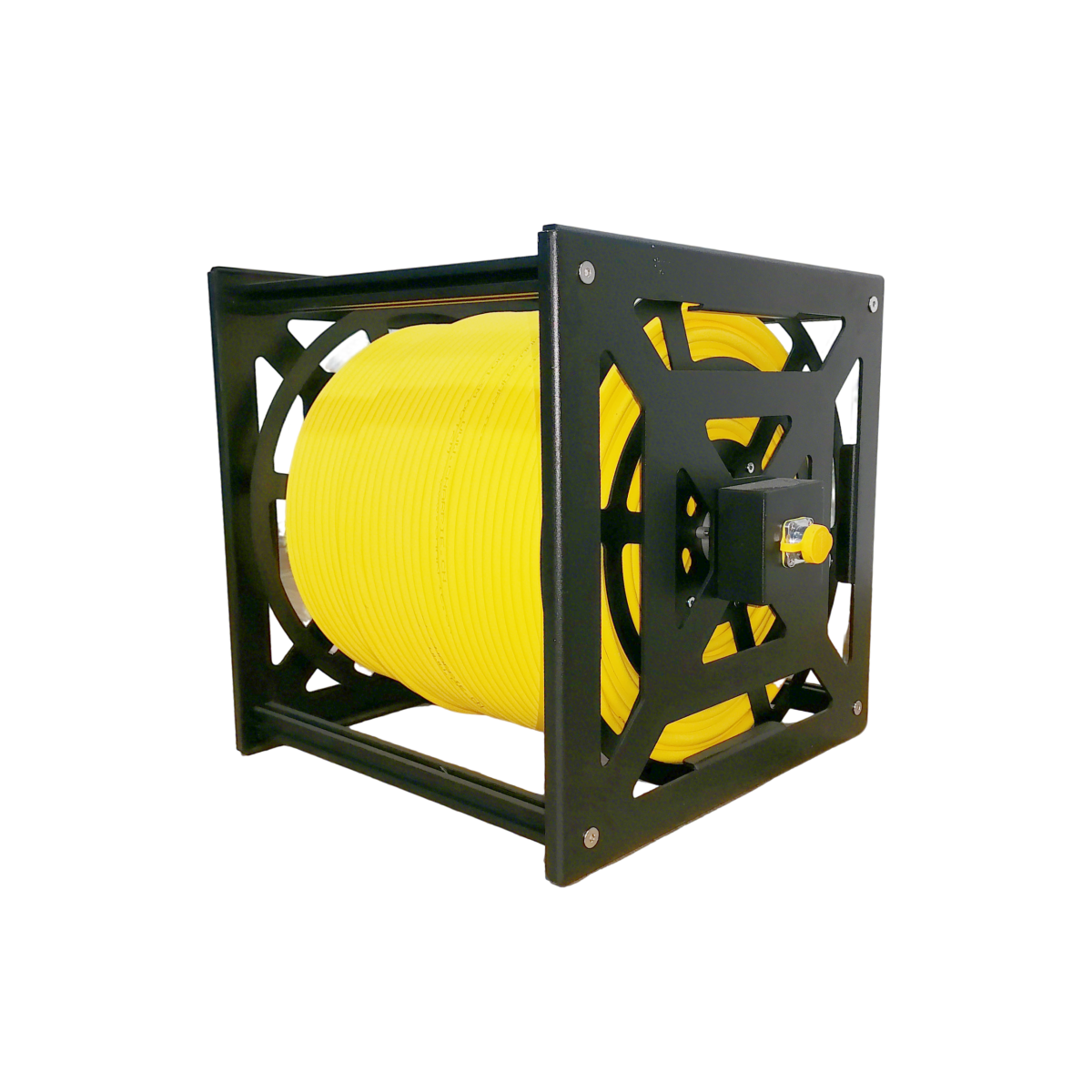

Cable Reel (M)

● Weight: 3.2 kg
● Dimension: 352*370*370 mm
● Capable of 400m cable with 8mm O.D.

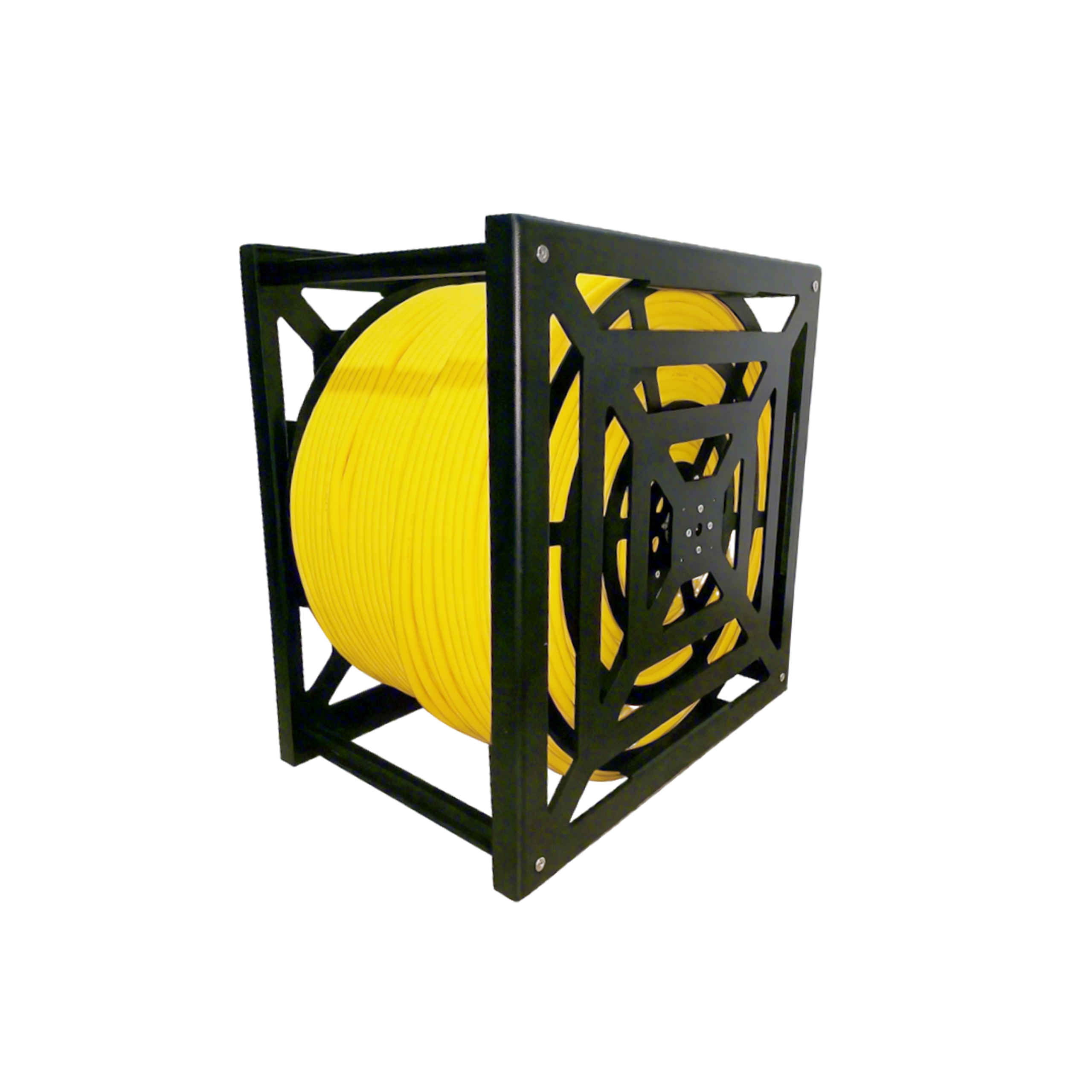

Cable Reel (L)

● Weight: 9.3 kg
● Dimension: 358*530*530 mm
● Capable of 800m cable with 8mm O.D.

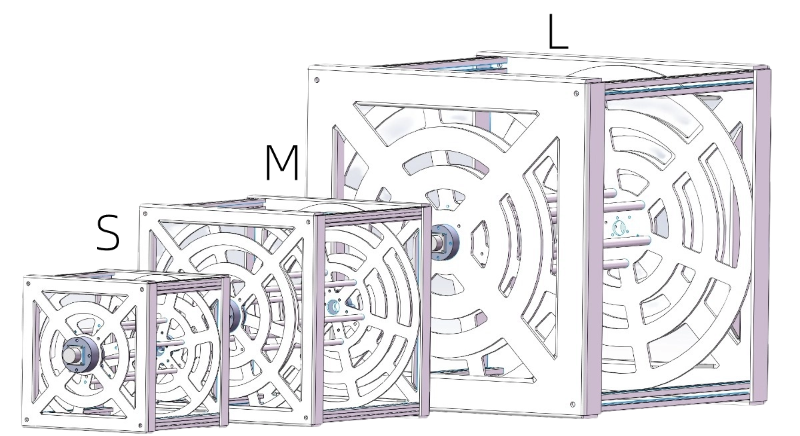

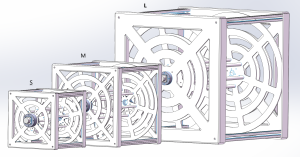

Model Selection Reference

Model	L/mm	W/mm	H/mm	Weight/kg	Maximum Winding Length/m
Model	L/mm	W/mm	H/mm	Weight/kg	4mm	6mm	8mm	10mm	12mm	14mm
S	130	300	300	2.4	500		100
M	352	370	370	3.2	1600	700	400	200
L	358	530	530	9.3	3500	1500	800	500	300
XL	506	530	530	9.8		2300	1300	800	500	400

Interface Specifications

Item	Specification
Dielectric Strength	300VDC@50Hz
Operating Current	2-way, 3-way: 20 A 3-way, 4-way: 10 A 4-way, 8-way: 5 A 8-way, 12-way, 14-way: 2 A
Wire Color Code	1-Red, 2-Orange, 3-Yellow, 4-Green,5-Black, 6-Blue, 7-Purple, 8-Gray
Packing List	Cable Reel (with Slip Ring & Waterproof Socket) × 1、Matching Waterproof Plug × 1、Cable Ties × 3
Installation & Usage	1.Connect the long cable to the output terminals on the inner side of the slip ring in sequence. 2.Connect the short cable to the matching waterproof plug according to the corresponding wire color code. 3.Form a U-bend with the long cable at the inner side of the reel and secure it with 3 cable ties to prevent slippage. 4.Arrange the long cable neatly and wind it onto the reel.
