Name: M750d Multibeam Imaging Sonar
Brand: BluePrint
SKU: 4
Availability: InStock

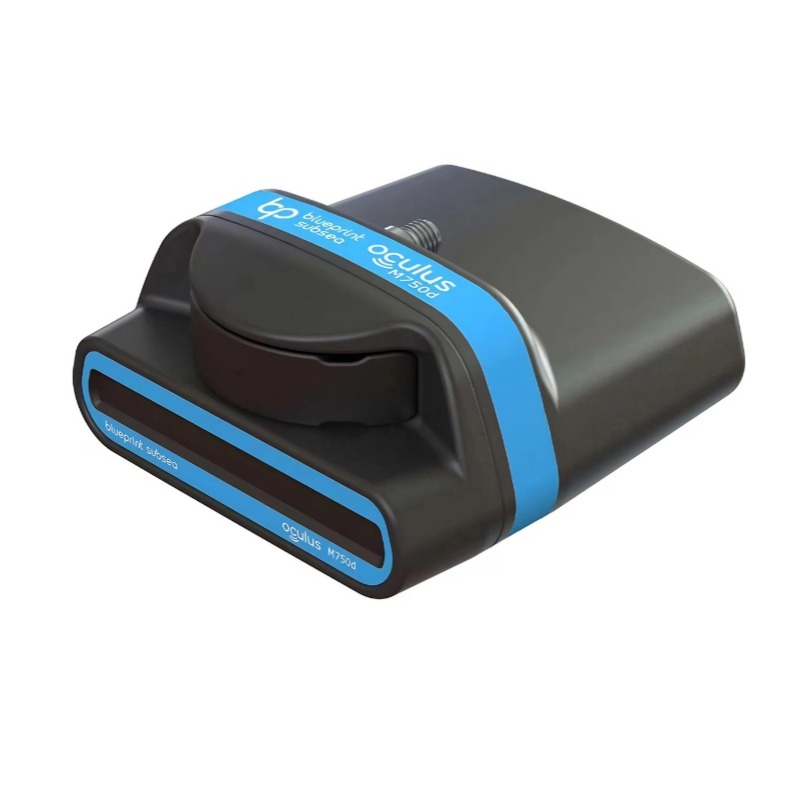

M750d Multibeam Imaging Sonar

$25,400.00

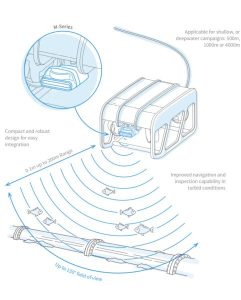

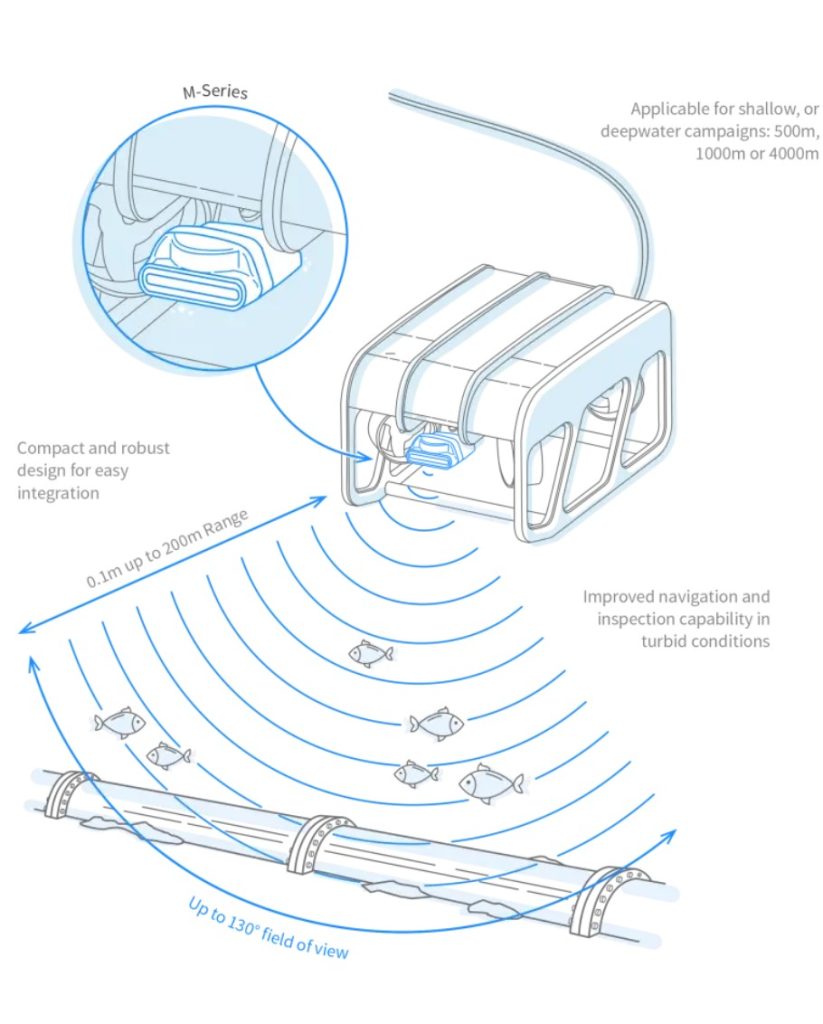

Oculus M750d high-precision dual-frequency multibeam forward-looking imaging sonar is mostly equipped with small and medium-sized underwater ROVs and AUVs, which are used for underwater detection and navigation, structural inspection, salvage and rescue, and security patrol.

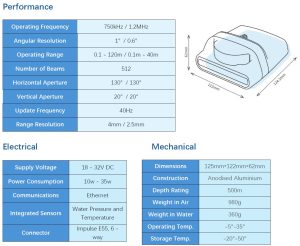

Dual-frequency imaging at 750kHz and 1.2MHz
Detection range 0.1~120 meters, distance resolution 2.5mm
Horizontal aperture 130°, vertical aperture 20°
Depth rating 500m

Detection of underwater shipwrecks, Sunken SUV & More

One Big Fish (50cm) Detected

PRODUCT DESCRIPTION

Blueprint Oculus M750d, a dual-frequency multibeam forward-looking imaging sonar, with a 500m depth rating, is suitable to use on small inspection-class ROVs, as well as large, operational-class underwater unmanned platforms.

● Dual-frequency operation at 750kHz and 1.2MHz
● Detection range 0.1~120 meters
● Distance resolution 2.5mm
● Horizontal opening angle 130°, vertical opening angle 20°
