Product Introduction
Doppler Velocity Log (DVL) – High-Precision Commercial Grade The DVL A50 is the world’s smallest Doppler Velocity Log (DVL). Leveraging cutting-edge technology, the A50 combines an ultra-compact form factor with low cost and exceptional performance. By providing highly accurate velocity-over-ground data, the A50 enables ROVs, AUVs, and divers to achieve superior precision and stability in navigation, even when operating in dynamic environments characterized by strong currents and complex terrain. |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Acoustic Performance | |
|---|---|
| Transducer Frequency： | 1 MHz |

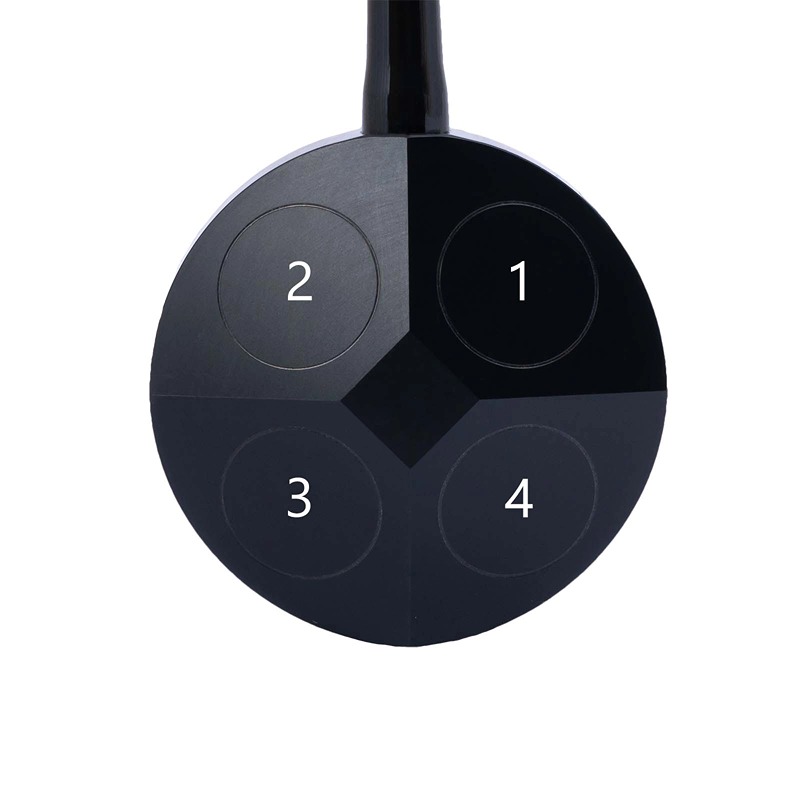

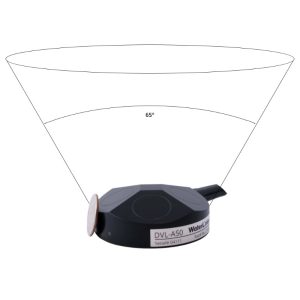

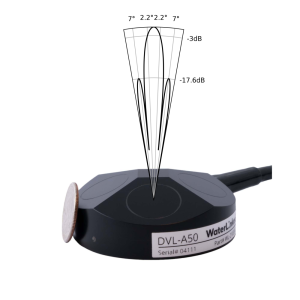

| Transducer Configuration: | 4-beam convex Janus array |
| Ping Rate: | 4~15 Hz (Adaptive to altitude) |
| Sensor Assistance: | Integrated AHRS/IMU (Yost Labs TSS-NANO) |
| Minimum Altitude: | 5 cm |
| Maximum Altitude: | 50 m（Altitudes＞35 m are subject to seabed conditions, salinity, etc.） |
| Maximum Speed: | 3.75 m/s |
| Velocity Resolution: | 0.1 mm/s |
| Long-term Accuracy: | ±1.01 % |
| Electrical / Interface | |
|---|---|
| Input Voltage： | 10~30 VDC |
| Power Consumption : | 4 w（Average） |
| Inrush Current: | 35 w（Peak at startup） |

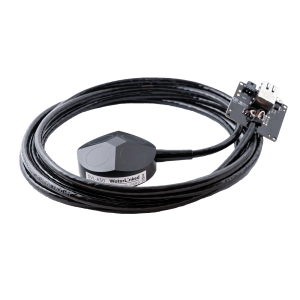

| Physical Interface Cable: | 8-core wire (Power / Serial / Ethernet)
3 m PUR cable（D=6.7 mm）with interface module |
| Indicators: | Status LEDs (Power, Lock) |
| Communication: | UART 115200 baud rate (3.3V TTL), Ethernet |
| Protocols: | Water Linked API and PD6 |

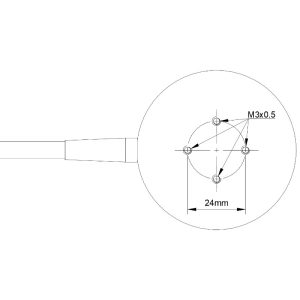

| Mechanical Specifications | |
|---|---|
| Diameter： | 66 mm |
| Height: | 25 mm |
| Weight in Air: | 170 g |
| Weight in Water: | 105 g |
| Depth Rating: | 300 m |
| Material: | 316 Stainless Steel, Engineering Plastics |
| Operating Temperature: | -5~60 ℃ |
